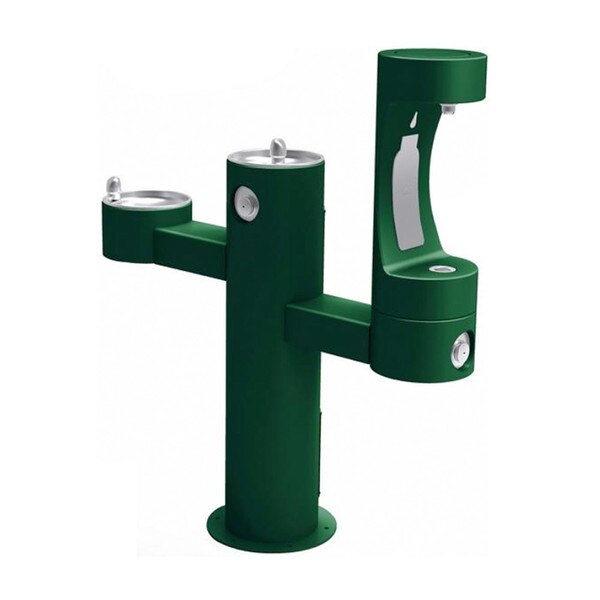

Elkay LK4430BF1LEVG Outdoor EZH2O Bottle Filler and Bi-level ADA Pedestal Fountain, Evergreen
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas.
Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
- Corrosion-resistant base material provides the ultimate protection from the elements.
- Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Laminar flow provides clean fill with minimal splash.
- Freeze-resistant options available.
- Available in four colors: Evergreen, Blue, Gray, and Black.
Certifications:

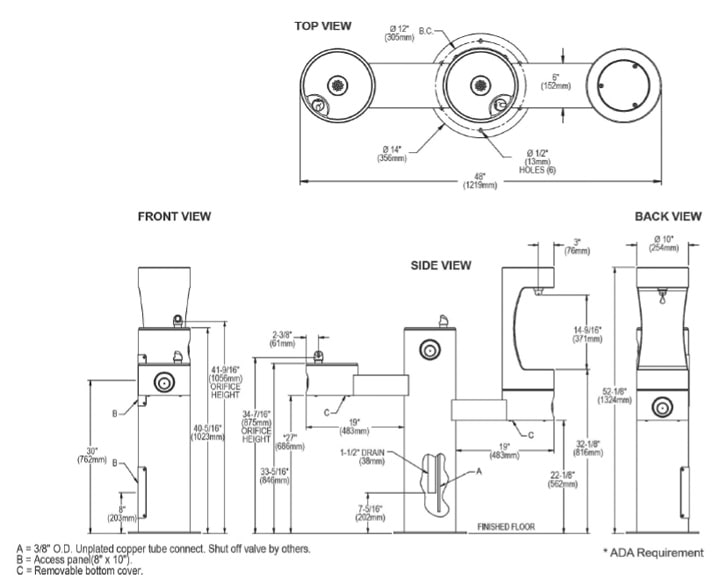

Measurement Diagram:
| Installation Location: | Outdoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Floor or Free Standing |
| Operation: | Push Button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Evergreen Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 52-1/8" Tall x 48" Wide x 14" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 56" Length x 48" Width x 33" Height |
| Shipping Weight: | 215 lbs. |
| UPC / GTIN: | 94902063195 |
| Manufacturer Model No.: | LK4430BF1LEVG |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Outdoor ezH2O® Lower Bottle Filling Station Tri-Level Pedestal, Non-Filtered Non-Refrigerated. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Floor Mount/Freestanding, for Outdoor applications, serving 3 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
