Elkay Part LK4471LHBEVG Locking Hose-Bib for Elkay Outdoor Pedestal Fountains, Evergreen
Details

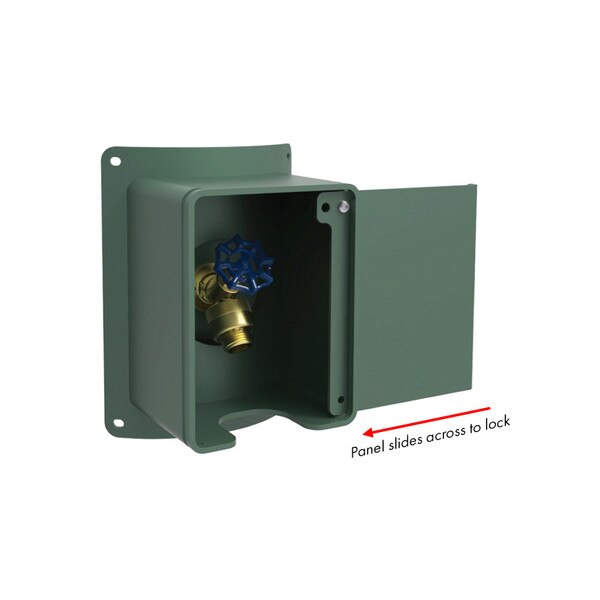

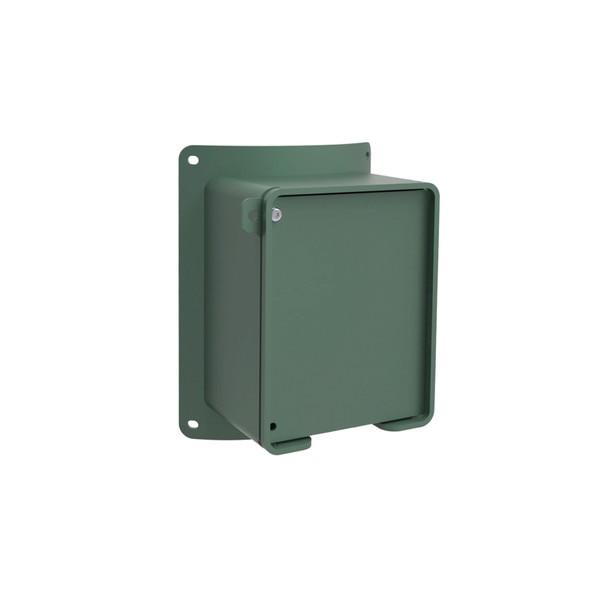

Elkay LK4471LHB Locking Hose Bib is for use with outdoor tubular fountains and bottle fillers. This accessory is color coordinated, coming in the same Evergreen finish as the fountain. It is designed to replace the existing access cover plate and provide secure access to a spigot for attaching a hose.
The base material is constructed from marine-grade 316 stainless steel providing the ultimate corrosion protection. The heavy duty vandal-resistant tamper resistant screws resist stains and corrosion.
- Powder-coated exterior over a corrosion-resistant primary coating to provide protection from the elements.
- For use with Elkay outdoor tubular fountains and bottle fillers.
- 7-5/16" L x 5-3/16" W x 10" H. Weighs 13 Lbs.

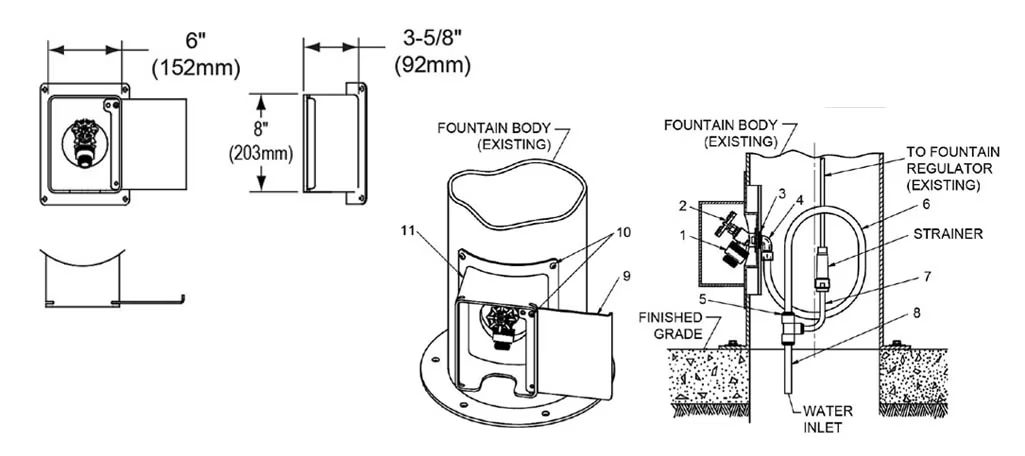

Measurement Diagram:
Specs
| Brand: | Elkay |
| Manufacturer Model No.: | LK4471LHBEVG |
| Type: | Hose Bib, Outdoor |
| Compatibility: | LK4400, LK4410, LK4420, LK4430 series fountains. (Will not work with LK4405, LK4408 or LK4409.) |
| Included: | 75624C Fitting - Hose Vacuum Breaker 75619C Faucet - 1/2" NPT 70977C Nut - Lock 1/2" Conduit 70972C Elbow - 90° × 1/2" MPT 75623C Fitting - Tee 1/2" x 1/2" × 3/8" 66555C Tube - 1/2" O.D. × 36.00" Lg. (Cont'd in Additional Comments.) |
| Overall Dimensions: | 10" Tall x 7-5/16" Wide x 5-3/16" Deep |
| Shipping Dimensions: | 12" Length x 11" Width x 9" Height |
| Shipping Weight: | 13 lbs. |
| UPC / GTIN: | 94902067629 |
| Country of Manufacture: | USA |
| Additional Comments: | 66475C Tube - 3/8" O.D. Tee to Strainer 66641C Tube - 1/2" O.D. × 4.38" Lg. 45838C* Door - locking Hose Bib 75535C Screw - 1/4-20 x 3/4" Torx 45837C* Panel - Locking Hose Bib 75521C Bit - Pinned Torx T-27 (NS) |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Locking Hose Bib. Overall dimensions are 7-5/16" x 5-3/16" x 10".
Special Features: 316 Stainless, Heavy Duty Vandal Resistant
Mounting Type: Floor Mount/Freestanding
Finish: Beige (BGE), Black (BK), Blue (BLU), Brown (BRN), Evergreen (EVG), Gray (GRY), Orange (ORN), Purple (PUR), Red (RED), Terracotta (TER), White (WHT), Yellow (YLW)
Dimensions: 7-5/16" x 5-3/16" x 10"
Shipping Weight: 13 lbs.
Special Note: For use with outdoor tubular fountains and bottle fillers
