Elkay LK4420BF1UEVG Outdoor Tubular (Pedestal) Bottle Filler & Water Fountain, Evergreen

(0) No Reviews yet


1 available for immediate shipment

IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses.

Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.

  • Corrosion-resistant base material provides the ultimate protection from the elements.
  • Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
  • Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
  • Laminar flow provides clean fill with minimal splash.
  • Freeze-resistant options available.
  • Available in four colors: Evergreen, Blue, Gray, and Black.

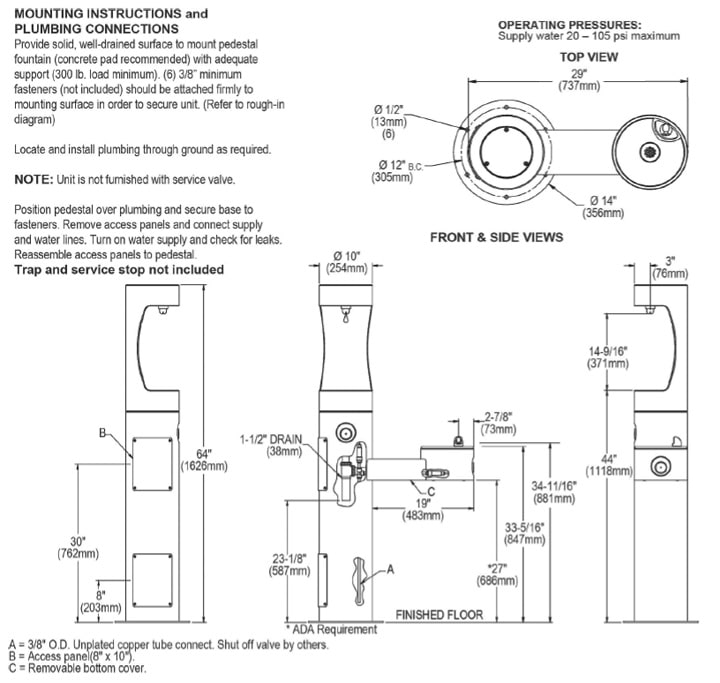

Measurement Diagram:

Installation Location: Outdoor
Number of Stations: One (1) drinking fountain
One (1) EZH2O bottle filling station
Mount: Floor or Free Standing
Operation: Push Button
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Stainless Steel, Evergreen Finish
Bubbler(s): Chrome Plated Vandal Resistant
Cooled: No
Filtered: No
Power: No power required
Status Display: None
Overall Dimensions: 64" Tall x 31" Wide x 14" Deep
Rough-in: Not applicable
Shipping Dimensions: 46-1/2" Length x 16-1/2" Wdith x 33-1/4" Height
Shipping Weight: 147 lbs.
UPC / GTIN: 94902062952
Manufacturer Model No.: LK4420BF1UEVG
Country of Manufacture: USA
Warranty: 5 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay Outdoor ezH2O® Upper Bottle Filling Station Bi-Level Pedestal, Non-Filtered Non-Refrigerated. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Floor Mount/Freestanding, for Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
