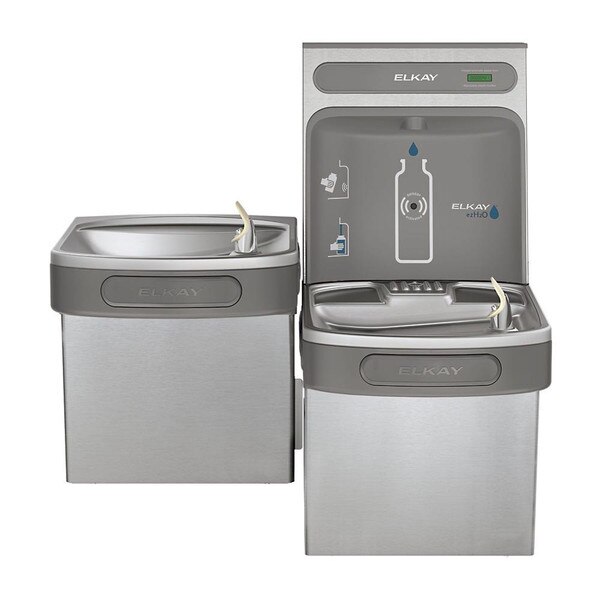

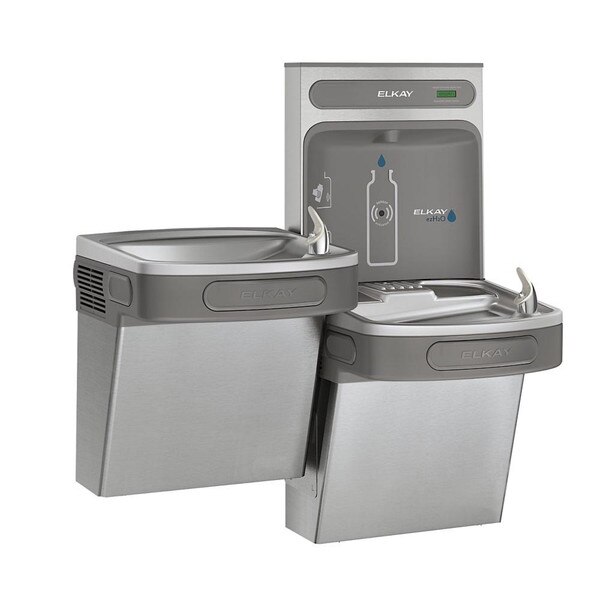

Elkay (EZSTL8WSSK) Wall Mount, Bi-level (Versatile), Water Cooler & EZH2O Bottle Fill, St Stl, (Refrigerated, Non-Filtered)
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.
NOTE: Tthis product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
Fill rate is 1.1 GPM.
Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
Laminar flow provides clean fill with minimal splash.
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
Real drain system eliminates standing water.
|Number of Stations:||Two (2) drinking fountains plus one (1) EZH2O bottle filling station|
|Mount:||Wall / Surface|
|Basin(s):||Stainless Steel, Brushed Finish|
|Bubbler(s):||Flexi-Guard Safety Bubbler|
|Cooling Capacity:||8 GPH|
|Status Display:||Green Ticker Bottle Counter|

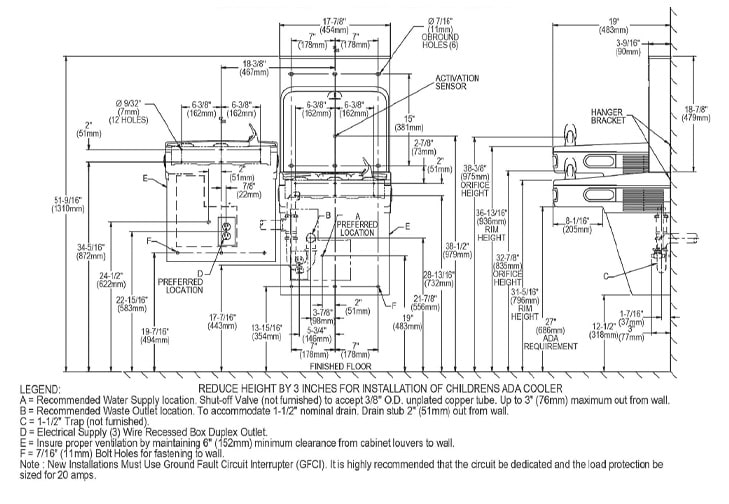

|Product Dimensions:||44-1/8" Tall x 36-3/4" Wide x 19" Deep|
|Net Weight:||86 lbs.|
|Shipping Dimensions:||Box 1: 34-3/16" Length x 20-1/2" Width x 19-11/16" Height|
Box 2: 24-3/8" Length x 23-11/16" Width x 8-13/16" Height
|Shipping Weight:||89 lbs.|
|Manufacturer Model No.(s):||EZSTL8WS_1G, EZSTL8WS_2G, EZSTL8WS_3G, EZSTL8WS*1G, EZSTL8WS*2G, EZSTL8WS*3G|
|UPC / GTIN:||094902745992|
|Country of Manufacture:||United States|
|Warranty:||5 Yr. Manufacturer's Limited|
Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler, Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
