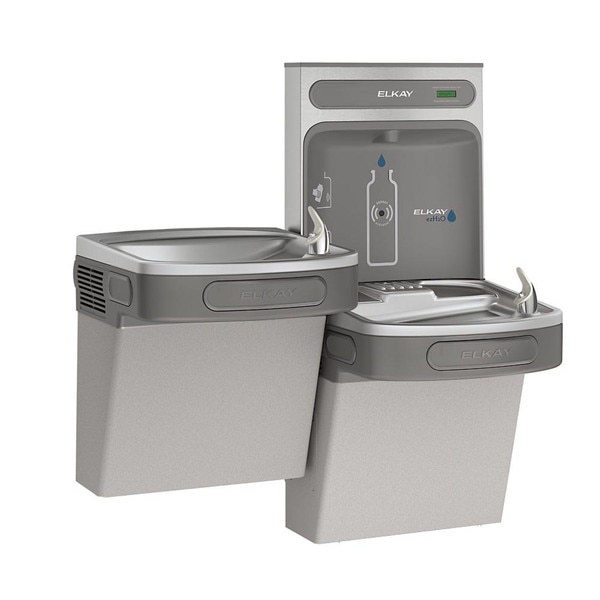

Elkay EZSTL8WSLK Wall Mount, Bi-level (Versatile), Water Cooler & EZH2O Bottle Fill, Lt Gry, (Refrigerated, Non-Filtered)

(0) No Reviews yet
$1,742.99
SKU: EZSTL8WSLK

IN STOCK

12 available for immediate shipment

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
  • Fill rate is 1.1 GPM.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.


Certifications:

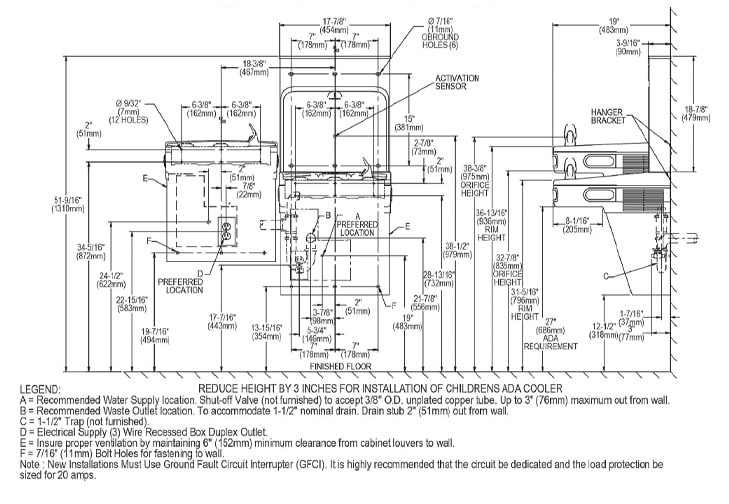

Measurement Diagram:


Installation Location: Indoor
Number of Stations: Two (2) drinking fountains plus one (1) EZH2O bottle filling station
Mount: Wall / Surface
Operation: One (1) automatic (infra-red sensor) bottle filler, and
two (2) push button drinking fountains
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Vinyl Clad Steel (Light Gray Granite)
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled: Yes
Filtered: No
Power: 110-120V (Standard)
Status Display: LCD Green Ticker Bottle Counter
Overall Dimensions: 44-1/8" Tall x 36-3/4" Wide x 19" Deep
Rough-in: Not applicable
Shipping Dimensions: Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height
Box 2: 20-1/2" Length x 19-11/16" Width x 34-3/16" Height
Shipping Weight: 89 lbs.
UPC / GTIN: '094902745985
Manufacturer Model No.: EZSTL8WSLK
Country of Manufacture: USA
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited

Warnings:

California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler, Non-Filtered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.



Care and Cleaning for Elkay ezH2O Bottle Filling Stations



Adjusting the stream height and coldness on Elkay water fountains



Replacing the sensor on an Elkay EZH2O Bottle Filling Station
