  • Elkay (EZSTL8SC) Wall Mount, Bi-level (Versatile) ADA Water Cooler, 8 GPH, St. Steel, (Refrigerated, Non-Filtered)

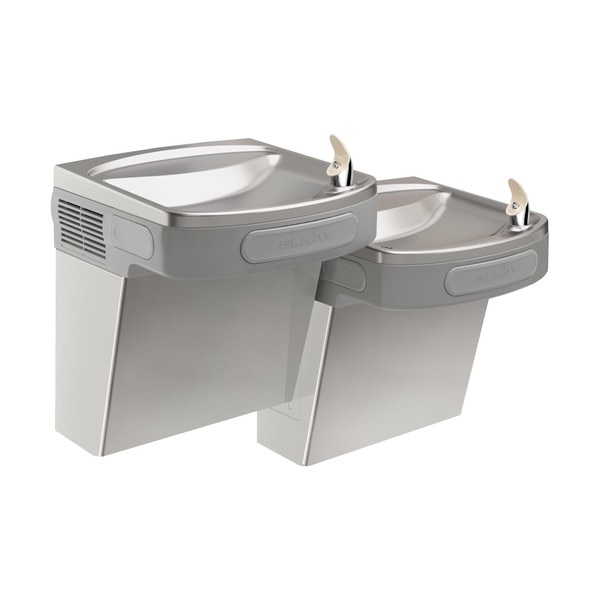

Elkay (EZSTL8SC) Wall Mount, Bi-level (Versatile) ADA Water Cooler, 8 GPH, St. Steel, (Refrigerated, Non-Filtered)

(0) No Reviews yet


8 available for immediate shipment

The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.

NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation

  • Attractive, contemporary design matches modern architecture.

  • Electronic bubbler push bars for easy activation.

  • Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.

  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.

  • Stainless steel finish is corrosion resistant and attractive.

  • Rated for indoor use.

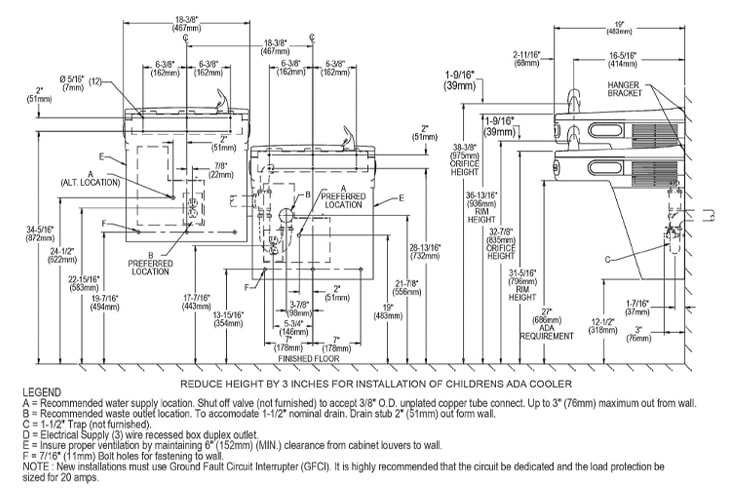

Measurement Diagram:

Installation Location: Indoor
Number of Stations: Two (2) drinking fountains
Mount: Wall / Surface
Operation: Push button
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled: Yes
Filtered: No
Power: 110-120V (Standard)
Status Display: None
Overall Dimensions: 25-5/16" Tall x 36-3/4" Wide x 19" Deep
Rough-in: Not applicable
Shipping Dimensions: 34" Height x 20" Width x 20" Length
Shipping Weight: 73 lbs.
UPC / GTIN: 094902310893
Manufacturer Model No.: EZSTL8SC
Country of Manufacture: USA
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:


Elkay Versatile Wall Mount Bi-level ADA Cooler Non-filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Front Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
