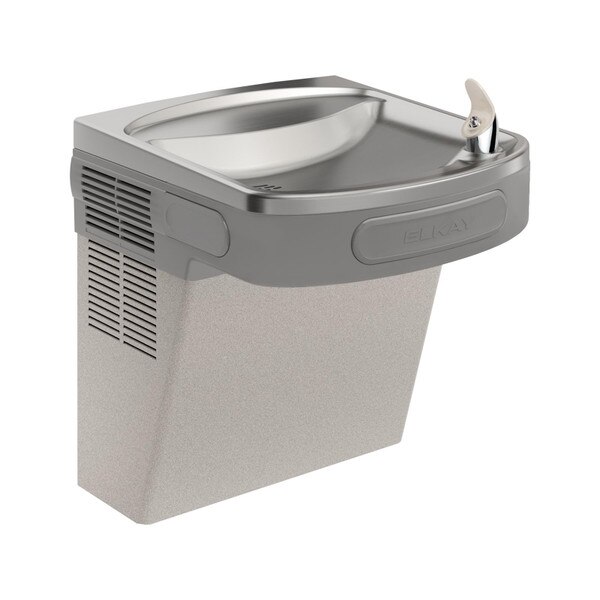

Elkay EZS8L Wall Mount, Water Cooler, 8 GPH, Lt Gray Granite (Refrigerated, Non-Filtered)
Details
The Elkay EZ models are our most popular water cooler series. They offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
- Attractive, contemporary design matches modern architecture.
- Electronic bubbler push bars for easy activation.
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Vinyl clad finish is durable and attractive.
- Rated for indoor use.
Available options for this series include: a stainless steel cabinet (see EZS8S), a "prepped" version which allows easy installation of a glass filler (see EZS8LF), an automatic sensor to avoid the need to touch the fountain (see EZO8L) and even a fully automatic bottle filler (see EZS8WSLK).
Certifications:

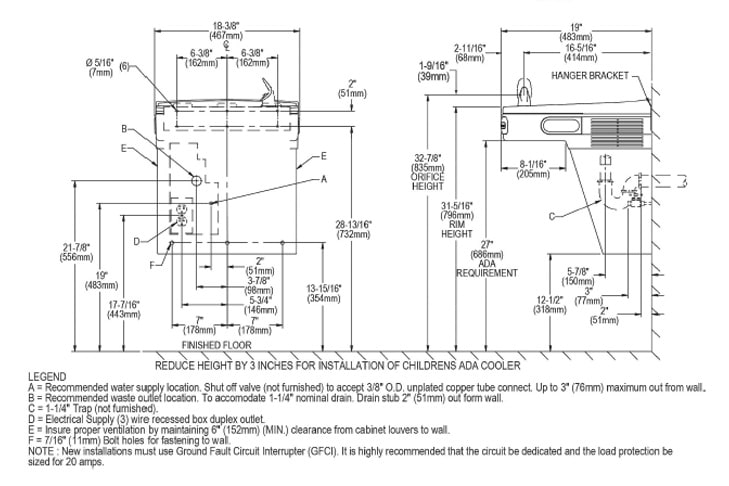

Measurement Diagram:
Alternatives:
If you would like this product with a filter, it's available as model LZS8L .
For some public areas, ADA guidelines require a wheelchair accessible fountain. The bi-level version of this fountain is EZSTL8LC and will be compliant.
Specs
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 19-13/16" Tall x 18-3/8" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 24" Height x 20" Width x 20" Length |
| Shipping Weight: | 51 lbs. |
| UPC / GTIN: | 094902226880 |
| Manufacturer Model No.: | EZS8L |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount ADA Cooler Non-filtered Refrigerated Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Front Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
