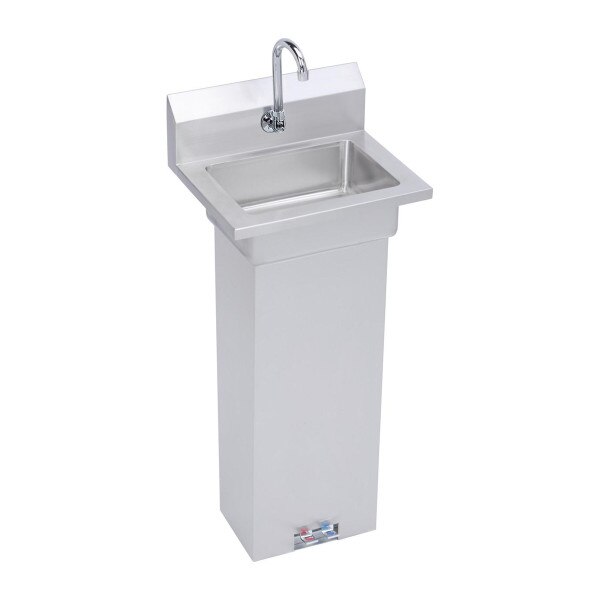

Elkay (EHS-18-PEDX) Hand Sink w/Pedestal Base Foot Valve and Faucet, SS, 18" x 14-1/2" x 47"
Elkay floor mount 18 gauge stainless steel hand sink with backsplash. Includes pedestal base, foot valve controls for hot and cold and a gooseneck faucet. Designed for foodservice applications. Overall dimensions are 18” Wide , 14-1/2” Deep, 47” High with the bowl measuring 14” Wide, 10” Front to Back, 5” Deep. Backsplash height is 6”. Strainer is included. Drain size is 1-1/2”. NSF 372 (lead free) certified.
High quality 18 gauge, #4 satin finish stainless steel
Pedestal base and foot valve for easy, hands free operation
Lead free faucet and strainer included with product
NSF Certified
Full length 6" backsplash
1-1/2" drain size
Certifications:

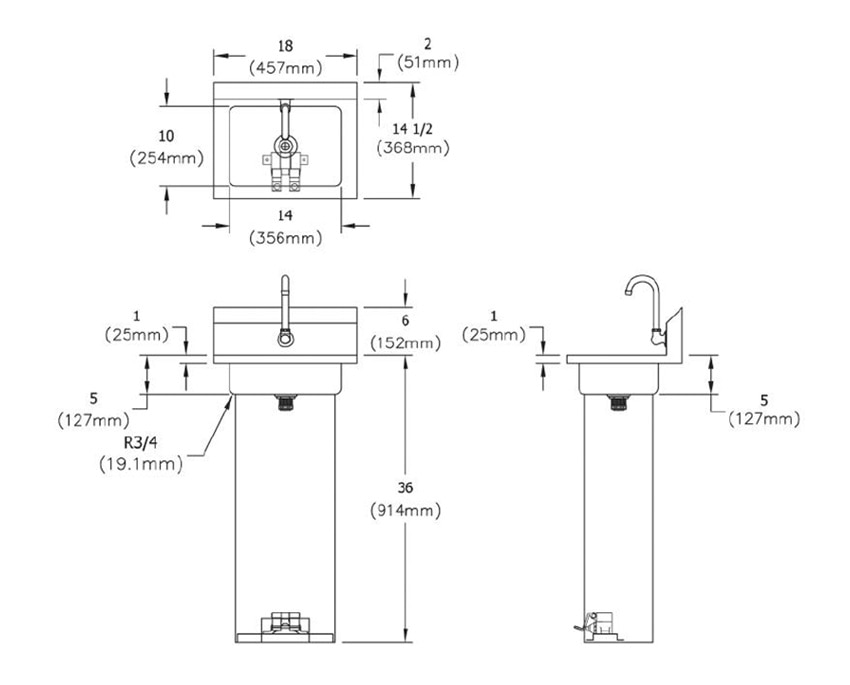

Measurement Diagram:
| Material: | Stainless Steel |
| Faucet Holes: | 2 |
| Installation Type: | Floor |
| Gauge: | 18 |
| Number of Bowls: | 1 |
| Bowl Dimensions: | L: 14" W: 10" H: 5" |
| Drain Size: | 1-1/2" |
| Application Type: | Foodservice |
| Overall Dimensions: | L: 18" W: 14-1/2" H: 47" |
| Net Weight (lbs.): | 62 |
| Shipping Dimensions: | L: 20" W: 72" H: 17" |
| Shipping Weight (lbs.): | 66 |
| Includes: | Pedestal base, foot valve, faucet, and strainer. |
| Code Compliance Faucets: | NSF 372 (lead free) |
| Special Notes: | Splash Mount, Goose Neck Facuet Included |
| UPC / GTIN: | 094902677996 |
| Country of Manufacture: | China |
| Manufacturer Model No.: | EHS-18-PEDX |
| Warranty: | 5 Yr. Manufacturer's Limited |
Architectural Specifications:
Elkay Stainless Steel 18" x 14-1/2" x 42" 18 Gauge Hand Sink with Pedestal Base Foot Valve and Faucet. Sink is manufactured from 18 gauge Stainless Steel with a #4 Finish finish, Center drain placement.
