Dyson Part (970528-01) Replacement HEPA filter for 9kJ (HU03) Hand Dryer

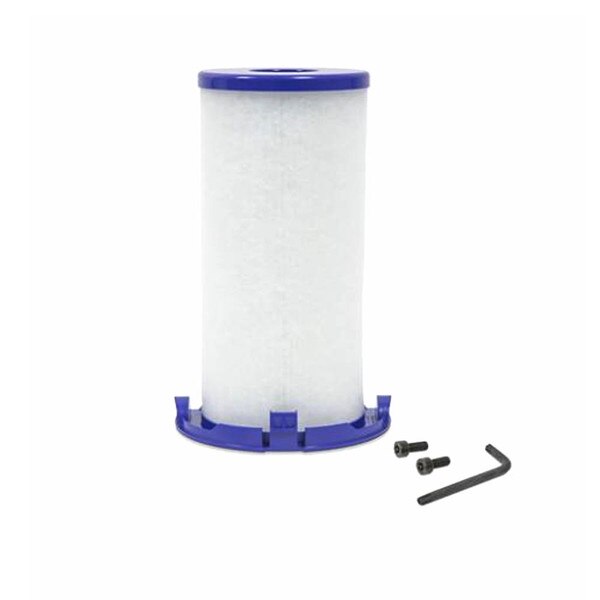

OEM Replacement HEPA filter for Dyson Airblade 9kJ. Includes filter, two mounting screws, and security wrench. The HEPA filter catches 99.97% of particles to ensure the cleanest air is being pushed out to dry hands. Remove the two screws at the bottom of the hand dryer to remove the front cover and replace the filter without dismounting the device entirely. Ensure the cleanest air quality with this replacement HEPA filter.
To Replace Filter:
Step 1. Using the tool supplied, remove the two security screws from the base of the machine.
Step 2. Carefully remove the main body from the mounting bracket.
Step 3. Remove the filter unit from the main body.
Step 4. Squeeze the filter unit and remove the filter.
Step 5. Dispose of any parts in accordance with local codes and regulations.
Step 6. Locate the main body onto the mounting bracket.
Step 7. Fit and fully tighten the two security screws and washers into the bottom of the machine using the tool supplied.
Step 8. Insert the new filter into the filter unit.
Step 9. Locate the filter unit into the main body. Make sure that it clicks securely into place.
Step 10. Switch on the main power supply and test.
|Overall Dimensions:||3.8" Diameter x approx. 7.5" Tall|
|Manufacturer Part No.:||970528-01|
|Shipping Dimensions:||8" Length x 4" Width x 4" Height|
|Shipping Weight:||1 lb.|
|UPC / GTIN:||Not published|
|Country of Manufacture:||United States|
|Warranty:||Warranted to be free from initial defects in material and workmanship.|
Recommended change interval: 8-12 mos.
