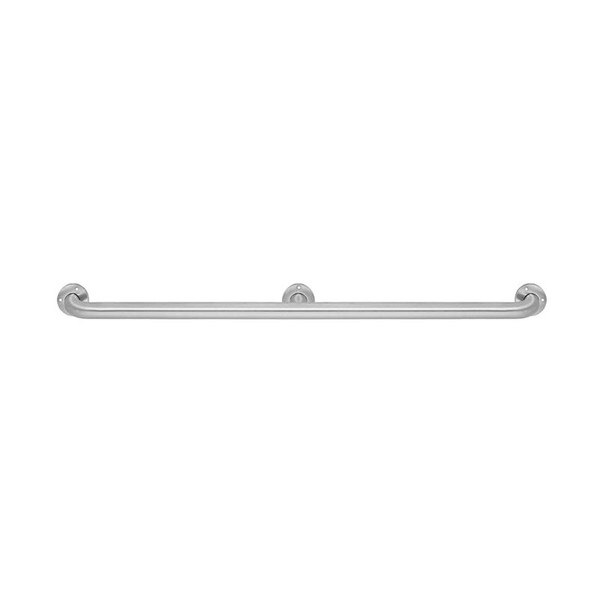

Bradley 8170-002480 Stainless Steel Grab Bar, Straight, 1-1/2" O.D., 48" L, Mid Sup., Exp. Mount

(0) No Reviews yet
$89.25
SKU: 8170-002480

IN STOCK

11 available for immediate shipment

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

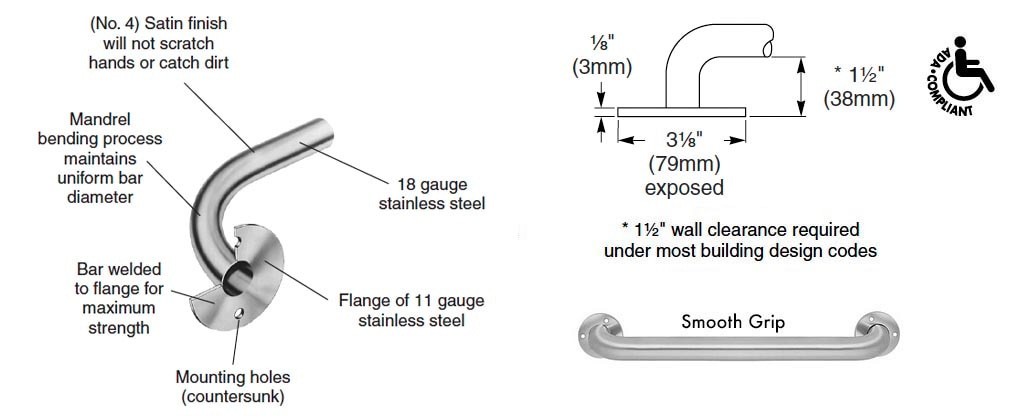

Top quality Bradley grab bar designed for commercial restroom applications. Mounting plates and all other exposed surfaces in architectural satin finish. Mount and screws are exposed. 18 gauge stainless steel tubing.

Easy to install with optional anchoring devices also available from Bradley. Grab bar has a 1.5 inch outside diameter. Wall clearance is 1-1/2 inches. When properly mounted,grab bar meets or exceeds the requirements of ANSI A117.1, ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG).

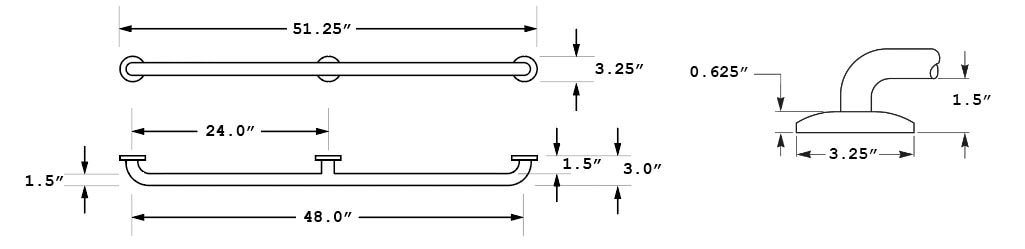

Measurement Diagram:



Type: Straight Grab Bar
Primary Material: Stainless Steel
Mount Type: Exposed
Outside Diameter: 1-1/2"
Rated Width: Not Applicable
Rated Length: 48"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 250 lbs.
Bariatric: No
Antimicrobial: No
Overall Dimensions: 51" Wide x 3" Tall x 3" Deep
Shipping Dimensions: 52" Length x 4" Width x 4" Height
Shipping Weight: 4.4 lbs.
UPC / GTIN: 084241008513
Manufacturer Model No.: 8170-002480
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited

Warnings:

This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
