Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.
Top quality Bradley grab bar designed for commercial restroom applications. Mounting plates and all other exposed surfaces in architectural satin finish. Mount and screws are exposed. 18 gauge stainless steel tubing.
Easy to install with optional anchoring devices also available from Bradley. Grab bar has a 1.5 inch outside diameter. Wall clearance is 1-1/2 inches. When properly mounted, grab bar meets or exceeds the requirements of ANSI A117.1, ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG).

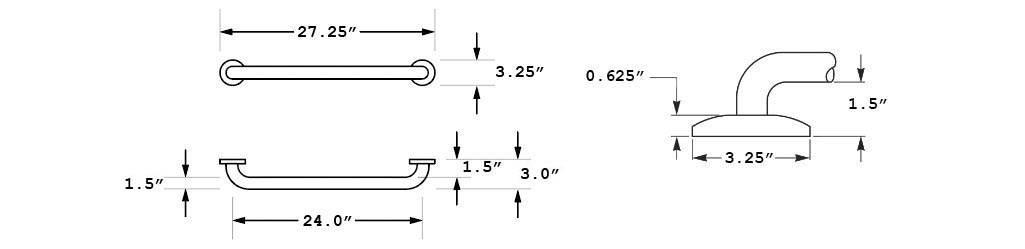

Measurement Diagram:
