This Bradley angle frame mirror has top quality 1/4mm" thick float glass, with full - Thermosetting infrared - cured paint backing with Poly-Glaze protective finish. All edges protected by shock-absorbing, neoprene tubing. Back is protected by a sheet of 1/4" extruded polystyrene.
Frame is one-piece, roll-formed stainless steel with bright annealed finish.
Channel is 3/4" x 3/4" x 7⁄16" with 90° mitered corners. Double strength continuous integral stiffener on all sides for added strength.
Frame is one-piece, roll-formed stainless steel with bright annealed finish.
Channel is 3/4" x 3/4" x 7⁄16" with 90° mitered corners. Double strength continuous integral stiffener on all sides for added strength.

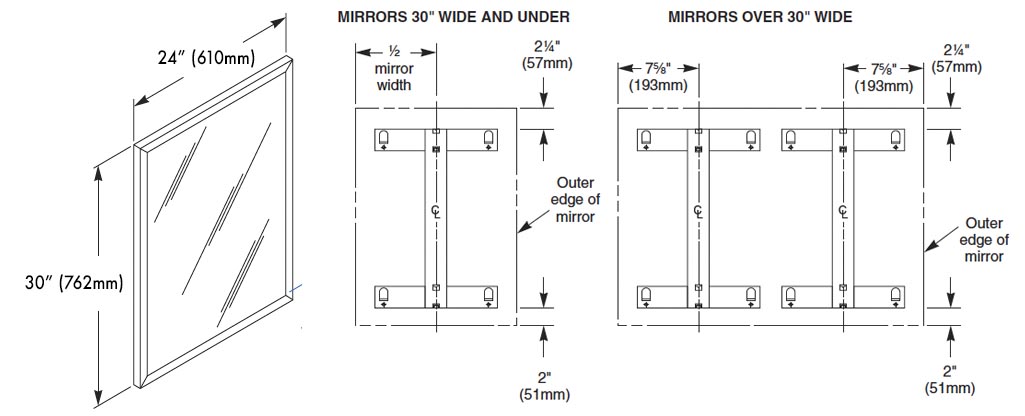

Measurement Diagram:
Architectural Specification:
Warnings:
