IMPORTANT: This product will arrive on a pallet via Freight service. Please let us know if you will need a lift gate or have restricted access (add'l fees may apply).
This Bradley angle frame mirror has top quality 1/4mm" thick float glass, with full - Thermosetting infrared - cured paint backing with Poly-Glaze protective finish. All edges protected by shock-absorbing, neoprene tubing. Back is protected by a sheet of 1/4" extruded polystyrene.
Frame is one-piece roll-formed stainless steel, 3/4 x 3/4 angle with corners welded, ground and polished smooth to satin finish. Double strength continuous integral stiffener on all sides for added strength. Bevel on front of angle secures frame flush against mirror.
Frame is one-piece roll-formed stainless steel, 3/4 x 3/4 angle with corners welded, ground and polished smooth to satin finish. Double strength continuous integral stiffener on all sides for added strength. Bevel on front of angle secures frame flush against mirror.

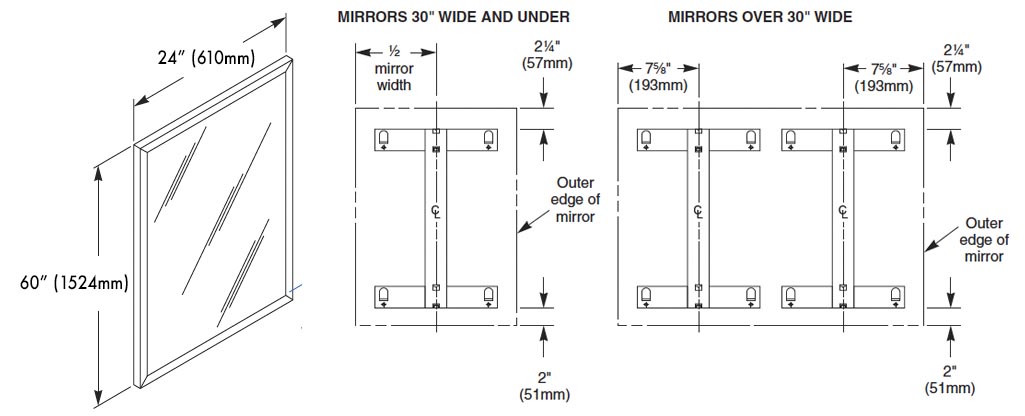

Measurement Diagram:
Architectural Specification:
Warnings:
- Specifications Sheet for Bradley 780 Series Mirrors
- Bradley 780 Series Fixed Tilt Mirror Installation Guide
- Bradley Product Warranty
- Bradley Stainless Steel Accessory Cleaning Guidelines
