This Bradley angle frame mirror has top quality 1/4mm" thick float glass, with full - Thermosetting infrared - cured paint backing with Poly-Glaze protective finish. All edges protected by shock-absorbing, neoprene tubing. Back is protected by a sheet of 1/4" extruded polystyrene.
Frame is one-piece roll-formed stainless steel, 3/4 x 3/4 angle with corners welded, ground and polished smooth to satin finish. Double strength continuous integral stiffener on all sides for added strength. Bevel on front of angle secures frame flush against mirror.
Frame is one-piece roll-formed stainless steel, 3/4 x 3/4 angle with corners welded, ground and polished smooth to satin finish. Double strength continuous integral stiffener on all sides for added strength. Bevel on front of angle secures frame flush against mirror.

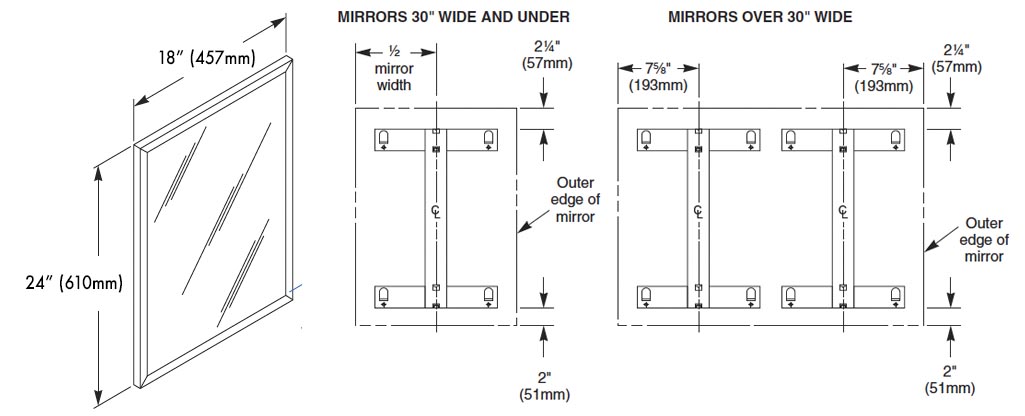

Measurement Diagram:
Architectural Specification:
Mirror shall be framed with heavy gauge, one-piece roll-formed ¾" x ¾" stainless steel angle with double strength continuous integral stiffener. Welded corners shall be polished to a uniform satin finish. Mirror shall be of first quality ¼" float glass guaranteed for 15 years against silver spoilage and protected by a shock-absorbing, neoprene tubing with Poly-Glaze protective finish. Back of unit shall be galvanized steel secure to frame with concealed screws, equipped with integral horizontal hanging brackets and separate wall hanger for concealed mounting.
Warnings:
