This Bradley angle frame mirror has top quality 1/4mm" float glass, thermosetting infrared-cured paint backing with Poly-Glaze protective finish.
The back of the mirror is protected by a wedge of extruded polystyrene, which is placed between the mirror and the galvanized steel.
Frame is made of 20 Gauge stainless steel, corners welded and ground smooth to satin finish. 20 gauge angle welded to frame provided additional rigidity. F

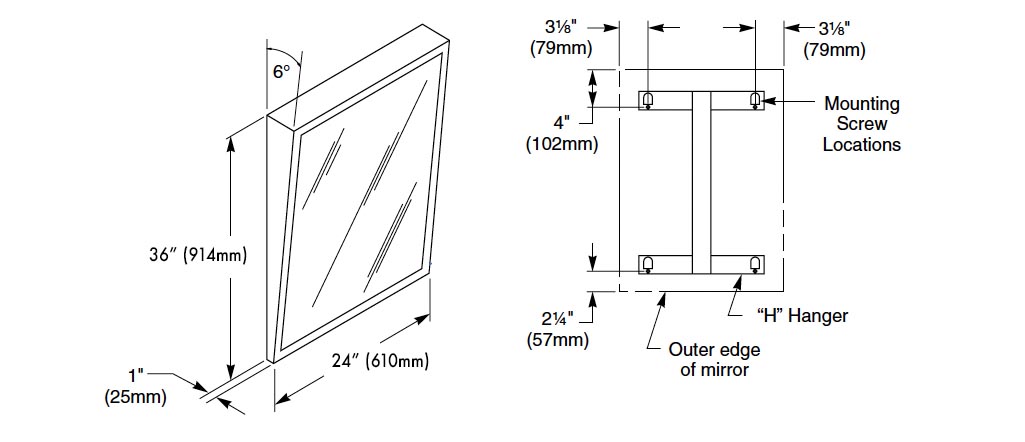

Measurement Diagram:

Architectural Specification:
Fixed tilt mirror shall be framed with 20 gauge stainless steel with 20 gauge concealed stiffeners. Welded corners shall be polished to a uniform satin finish. Mirror shall be of first quality ¼" float glass guaranteed for 15 years against silver spoilage and protected by a shock-absorbing, waterproof foam filler with Poly-Glaze protective finish. Back of unit shall be galvanized steel secured to frame with concealed screws, equipped with integral horizontal hanging brackets and separate wall hanger for concealed mounting.
Warnings:
