Please note this product is the Multi-Feed Soap Dispenser ONLY. You will also need to purchase ONE Multi-Feed Soap Tank which can accommodate up to 6 Multi-Feed units. Power supply must also be purchased for each soap dispenser.

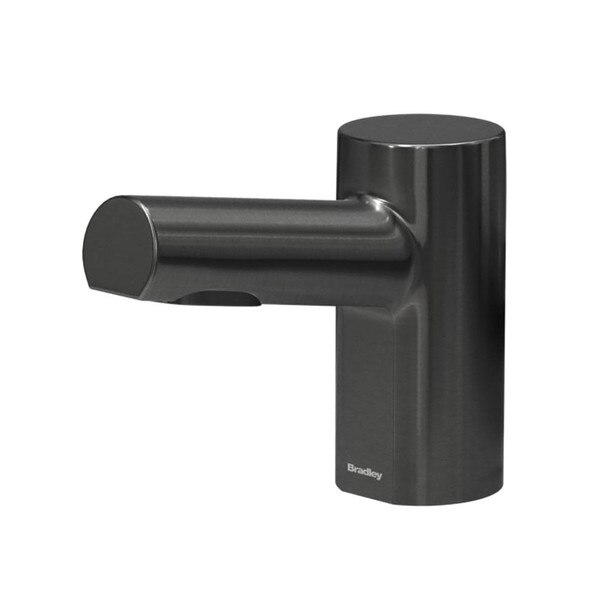

Verge Multi-Feed Soap Dispenser Metro Series. Pairs with Verge Faucet model S53-3300 in Brushed Black. This dispenser is for use with A14-033-BB brushed black stainless Multi-Feed Tank Assembly system. The 166.5 oz soap tank that can support up to 6 dispensers via a fill port hub on the top of the deck. It is compatible with any non-proprietary bulk foam soap. Touch-free dual sensor activation optimized to eliminate false activations. Refined, cylindrical design in chrome-plated cast brass construction with Brushed Black PVD finish. Indicator light at the base of the spout to indicate power, activation and low soap. Vandal-resistant construction including anti-rotational gasket/washer. Complies with ADA guidelines. Certified UL and CE Electrical Components. Certified ADA / ICC ANSI 117.1, Citation 309.4.
- IMPORTANT: No power supply is included with this product. Purchase one of the following separately:
AC Adapter A14-029 -or- Battery Pack A14-030 -or- AC Splitter A14-031 (which accomodates up to 4 devices) - Refined, high arc design coordinates with Verge™ faucet model S53-3300
- Smart sense system with LED light indicators that show when soap and battery levels are low
- Audible and visual alerts aid the refill process to prevent overfilling and spillage
- Hidden sensors, nozzles and anti-rotation gasket prevent vandalism
Certifications:

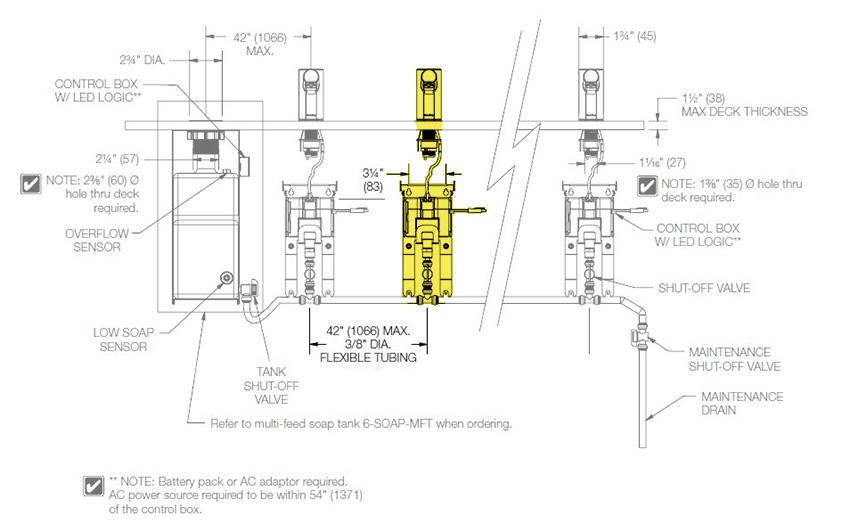

Measurement Diagram:
Warnings:
