Bobrick B-9543 Fino Collection Surface-Mounted Toilet Roll Holder, Stainless Steel
Details
 | The Fino line of restroom accessories is normally architecturally specified for locations looking to make a marquee design statement. These washroom fixtures are manufactured for Bobrick in the UK using a low volume, high-tech, CNC milling technique. The Fino series is made of a stainless steel that has a heavier gauge than other similar restroom accessories. As a result, this craftsman B-9543 grab bar is more expensive than other standard, mass-produced grab bars. |

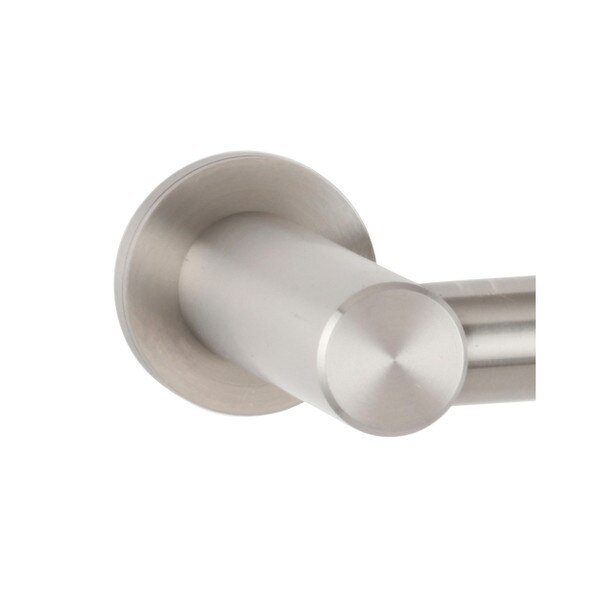

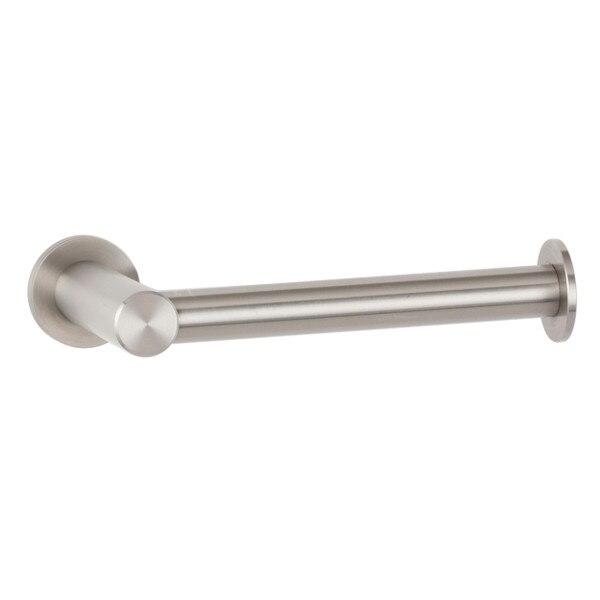

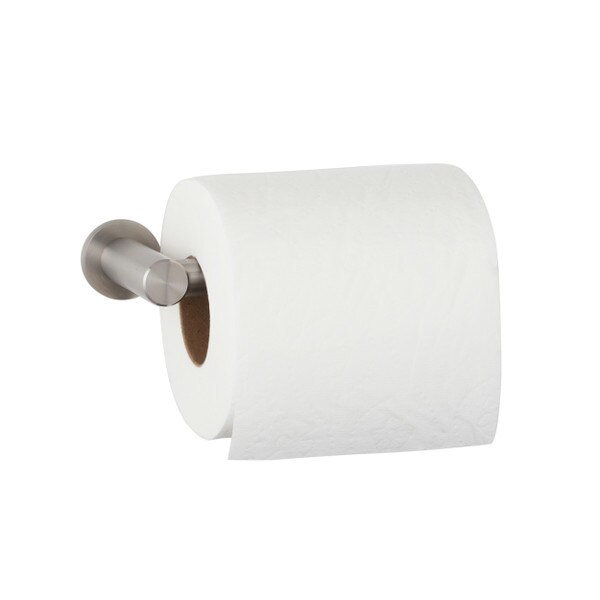

Machined stainless steel fixed single toilet roll holder.
- Height: 1-11/32″ (34mm) - Depth: 2-15/16″ (75mm) - Width: 5-5/8″ (142.5mm)
- Material: Type 303 stainless steel.
Measurement Diagram:
Specs
| Brand: | Fino |
| Manufacturer Part No.: | B-9543 |
| Primary Material: | Type 303, Machined Stainless Steel |
| Color | Finish: | Satin |
| Mount: | Concealed, Snap Flange |
| Configuration: | Standard Single Roll |
| Capacity: | 1 Std TP Roll (4-1/4" W x 4-1/2" Dia.) |
| Delivery: | Unrestricted |
| Spindle: | Fixed, stainless steel |
| Overall Dimensions: | 5.9" Wide x 1.3" Tall x 3" Deep |
| Rough-In: | N/A |
| Net Weight: | 2.5 lbs. |
| Shipping Dimensions: | Not published |
| Shipping Weight: | 3 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | United Kingdom |
| Warranty: | 1 Year Bobrick Limited |
Architectural Specifications:
Toilet Roll Holder shall be type 303 machined stainless steel in satin finish. Double Toilet Tissue Dispenser shall have 20mm (3/4") diameter machined post with integrated 16mm (5/8") diameter machined Dispenser Bar. Retaining Discs shall be type 303, 31.5mm (1-1/4") diameter, 3mm (1/8") thick stainless steel with satin finish permanently connected to Dispenser Bar. Concealed mounting flange shall be 4mm (5/32") thick threaded solid stainless steel plate, 34mm (1-5/16") diameter and equipped with two screw holes for attachment. Threaded solid flange cover shall be 2mm (1/16") thick stainless steel in satin finish, 34mm (1 5/16") diameter. Set screw shall fasten the post to the flange and secures the flange cover
