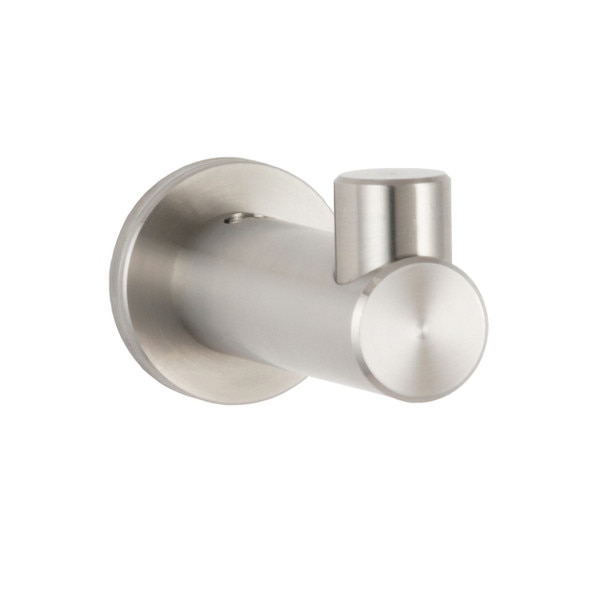

Bobrick (B-9542) Fino Collection Surface-Mounted Coat Hook, Stainless Steel, Satin Finish
Machined stainless steel coat hook. Modern stylish design. Can support loads of up to 150lbs. (68kg.) if properly installed. Mounting fasteners not included.
Height: 1-1/2″ (37.5mm) - Depth: 2-1/2″ (63.5mm) - Width: 1-11/32″ (34mm)
Material: Type 303 stainless steel.

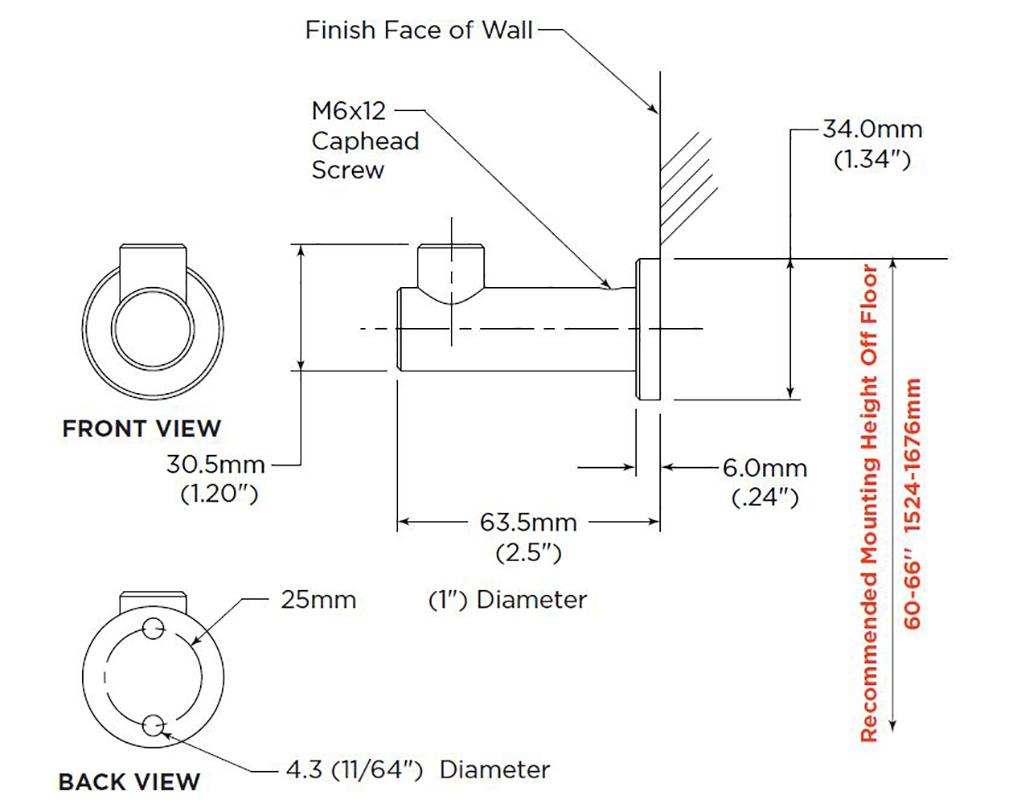

Measurement Diagram:
Alternatives:
For the matte black stainless steel version, see Bobrick B-9542.MBLK
| Type: | Single |
| Hooks: | One |
| Mount Type: | Concealed, Snap Flange Cover |
| Color / Finish: | Satin |
| Primary Material: | Type 303 Machined Stainless Steel |
| Overall Dimensions: | 1-11/32" Wide x 1-1/2" Tall x 2-1/2" Deep |
| Net Weight: | 3.5 lbs. |
| Shipping Dimensions: | Not published |
| Shipping Weight: | 4 |
| Manufacturer Model No.: | B-9542 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | United Kingdom |
| Warranty: | 1 Year Bobrick Limited |
Architectural Specifications:
Coat Hook shall be type 303 machined solid stainless steel in satin finish. Coat Hook shall have 20mm (3/4") diameter post with integrated 16mm diameter Hook Pin. Concealed mounting flange shall be 4mm (5/32") thick machined solid stainless steel plate, 34mm (1-5/16") diameter and equipped with two screw holes for attachment. Machined solid flange cover shall be 2mm (1/16") thick stainless steel in satin finish, 34mm (1-5/16") diameter. Set screw shall fasten the post to the flange and secures the flange cover.
