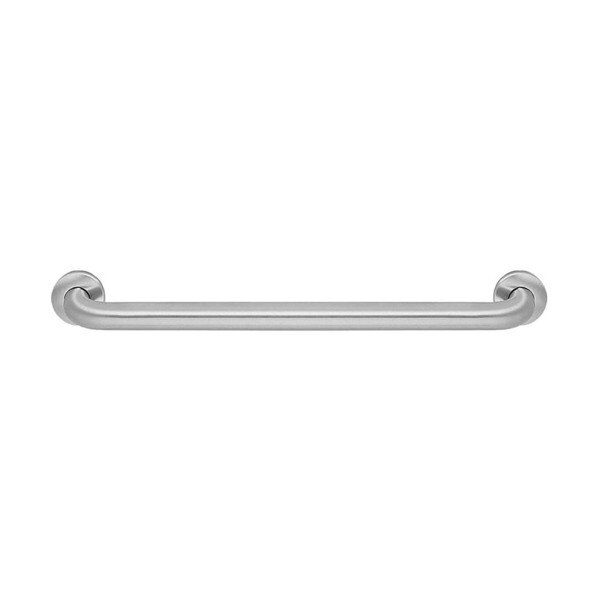

Bobrick (B-6806x24) Stainless Steel Grab Bar, 1-1/2" OD, 24" L, Concealed Mount (Snap Flange)
ADA compliant stainless steel grab bar. 1-1/2" diameter. 24" Rated length. Smooth satin finish. Snap flanges cover concealed mounting plates. 1-1/2" handle clearance from wall.
Overall dimensions: 51-1/4" Long x 3-1/4" Tall x 3" Deep
Can support loads in excess of 900 lbs. when properly installed.

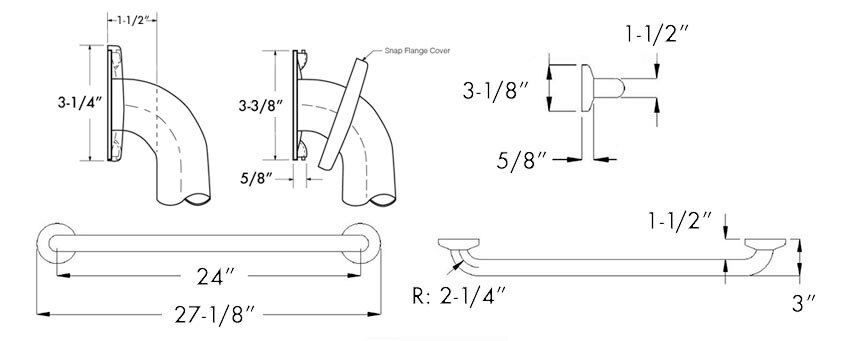

Measurement Diagram:
| Type: | Straight Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/2 inch |
| Rated Width: | Not applicable |
| Rated Length: | 24" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | 900 lbs. |
| Bariatric: | Yes |
| Anti-Microbial: | No |
| Overall Dimensions: | 27-1/8" Wide x 3-1/8" Tall x 3" Deep |
| Net Weight: | 2.2 |
| Shipping Dimensions: | 28" Length x 4" Width x 4" Height |
| Shipping Weight: | 2.7 |
| UPC / GTIN: | 716954003638 |
| Manufacturer's Part No.: | B-6806 X 24 |
| Country of Manufacture: | US |
| Warranty: | 1 Yr. Manufacturer's |
