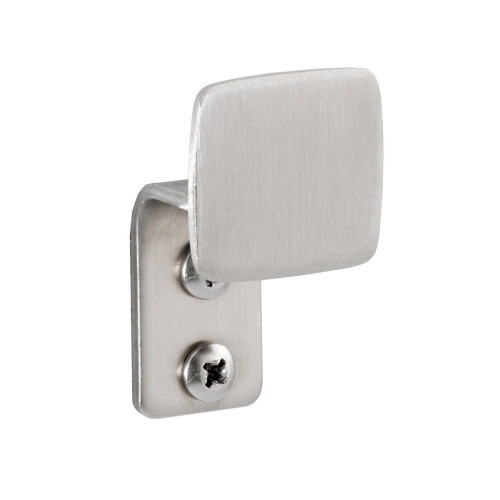

Satin finish stainless steel. Flange is 2" x 2" (50 x 50mm). Hook is 1 - 1/4" high x 1 - 1/4" wide (30 x 30mm). Projects 2" (50mm) from wall.
- 18-8, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 16-gauge (1.6mm) stainless steel mounting bracket. All-welded construction.
- Wall/Surface Mount. Bracket is secured to wall. Hook secured to bracket with set screw.
Measurement Diagram:

Architectural Specification:
Surface-mounted robe hook shall be type-304 stainless steel with satin finish. Flange shall be 22 gauge (0.8mm) and equipped with concealed, 16-gauge (1.6mm) mounting bracket that is secured to concealed, 16-gauge (1.6mm) wall plate with a stainless steel setscrew. Cap shall be 10 gauge (3.6mm), welded to support arm.
