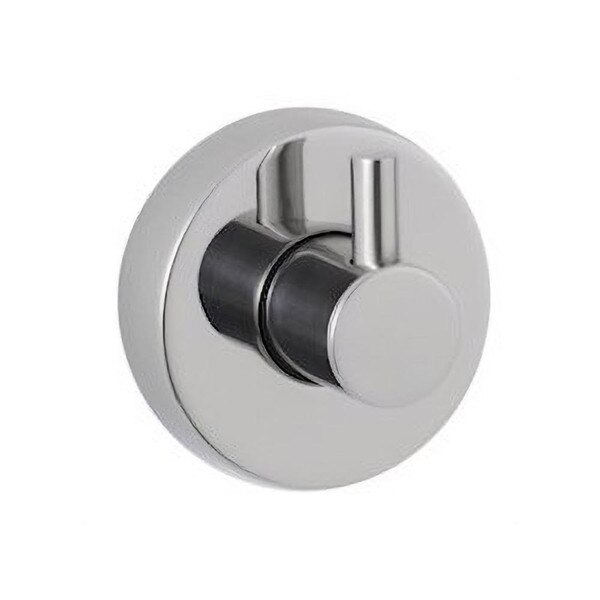

Bobrick B-5426 Surface-Mounted, Polished Stainless Steel Coat Hook
Elegant modern design coat hook. Hook is 1/2″ (13mm) high. Projects 1 - 5/16″ (35mm). Threaded escutcheon conceals mounting plage.
Architectural satin finish.
Mounting fasteners are NOT included.

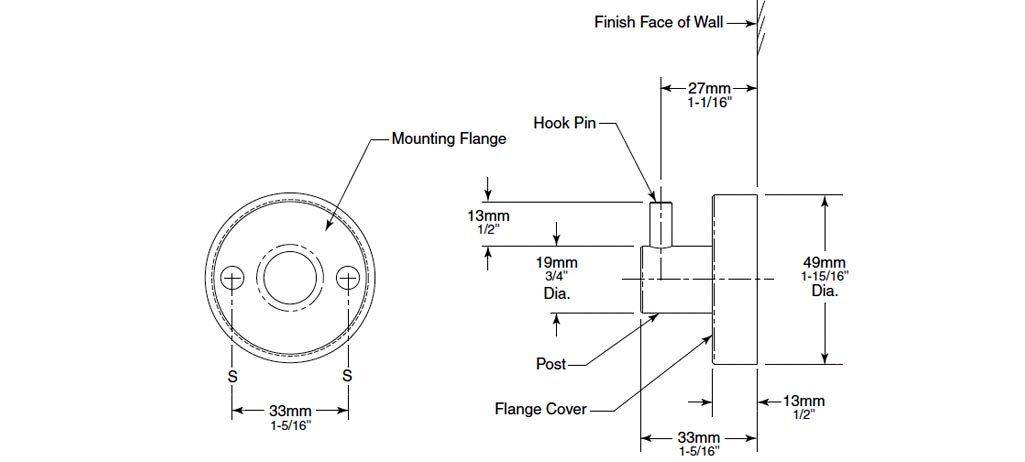

Measurement Diagram:
| Installation Type: | Wall / Surface |
| Material: | Stainless Steel, Bright Polished |
| Overall Dimensions: | 1 - 15/16" Wide x 1 - 15/16" Tall x 1 - 5/16" Deep |
| Net Weight: | 0.4 lbs |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lbs. |
| Manufacturer Model No.: | B-5426 |
| UPC / GTIN: | 716954012784 |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Coat Hook shall be type-304 stainless steel with ________________ (insert one satin finish or bright polished) finish. Coat Hook shall have 19mm (3/4") diameter Post with 6.4mm (1/4") diameter Hook Pin. Concealed mounting flange shall be 5.6mm(7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16")diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.
