Provides convenient passage for specimen from patient area to laboratory. Mounts in walls 3" - 6″ thick with adjustable flange. Type-304 stainless steel, satin finish. ADA-compliant interlocking mechanism prevents both doors from being open at the same time; provides sight barrier. Removable stainless steel spillage tray. Rough wall opening: 12 - 3/8″ W x 12 - 3/8″ H (314 x 314mm).
- Cabinet is entirely constructed of 20 gauge (0.9mm) Type 304 stainless. All welded construction.
- Two door pass through. For privacy, door interlock prevents both doors from opening at same time.
- Spillage tray and adjustable flange provided.
- Accomodates wall thickness up to 6 inches.

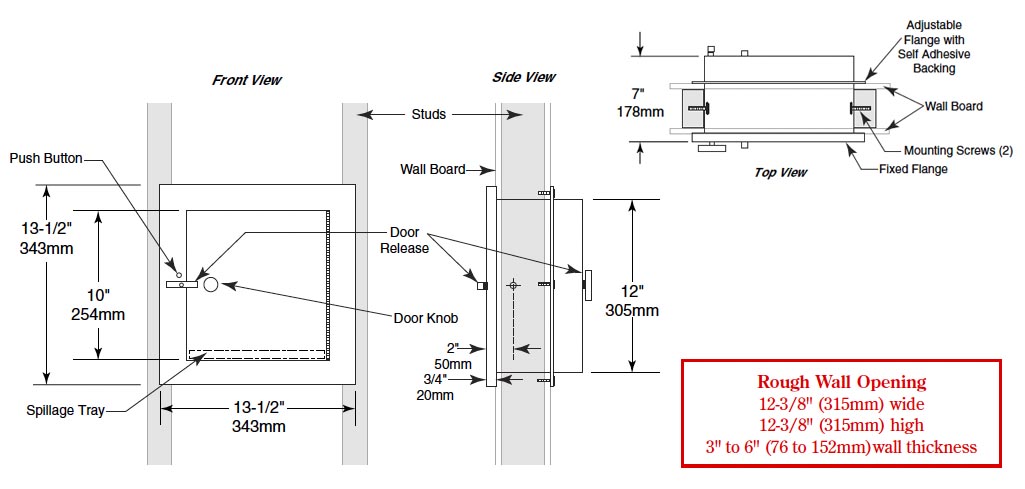

Measurement Diagram:
Architectural Specification:
Specimen Pass Through Cabinet shall have 2 doors with interlock to prevent the opening of both doors at same time. Unit shall be constructed of Type 304 stainless steel with satin-finish, welded and polished. Unit shall comply with ADA-ABA, ICC/ANSIA117.1 for operation with one hand with less than 5 pounds of force (22.2 N) without tight grasping, pinching or twisting of the wrist. Provide spillage tray and adjustable wall flange. Door secured to cabinet with a full-length stainless steel piano-hinge.
