Equipped with stainless steel skirt for semi-recessing in 4″ (100mm) deep walls. Push-button operation. Less than 5 lb of force; no grasping, pinching or twisting of the wrist. Easy access product tray. Single-coin slots are key to jam-resistant operation. Accepts one or two quarters (U.S. or Canadian). Push-button coin return cancels product selection. Returned coins or wrong coins (1¢, 5¢,10¢) by-pass mechanism and drop into product tray. Empty product indicator automatically blocks coin slot. Easy product loading, no weights. Holds 30 tampons or 20 napkins. Two flush tumbler door locks keyed like other Bobrick accessories. Separately-keyed coin box lock for management access. Easy 25¢ to 50¢ field coin conversion. Type-304 satin-finish stainless steel on exposed surfaces. Patented.
- 18-8, Type-304, 18-gauge (1.2mm) stainless steel. All-welded construction.
- Front of door has same degree of arc as other Bobrick Contura Series washroom accessories.
- Impact-Resistant PC-ABS Push Buttons. Coin mechanisms can be converted in the field to any standard coin denomination (Free, 25¢ or 50¢) order Part No. 3706-250 for Free Vend Conversion Kit.
- After coin is inserted in dispensing mechanism of patron's choice, pushing button dispenses boxed sanitary napkin or tampon tube. Mechanical operations; no batteries or electricity required.

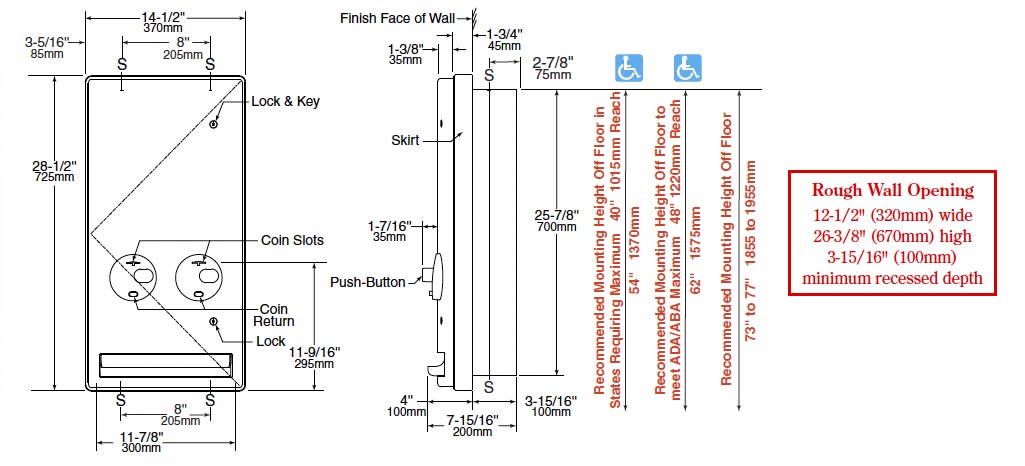

Measurement Diagram:
