Unit equipped with TowelMate and LinerMate. Satin-finish stainless steel. Flush tumbler lock. Dispenses 350 C-fold or 475 multifold towels. Waste receptacle has a 3-gallon (11.4-L) capacity; projects 2 - 1/2″ (65mm) from wall. Removable front panel for cleaning. Rough wall opening: 11 - 3/8″ W x 26 - 5/8″ H x 4″ minimum depth (290 x 675 x 100mm).
- 18-8, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction.
- Front of waste receptacle has same degree of arc and match other Bobrick ConturaSeries accessories in the washroom.
- Equipped with LinerMate to facilitate installation and removal of disposable trash liners, retains liner inside waste receptacle

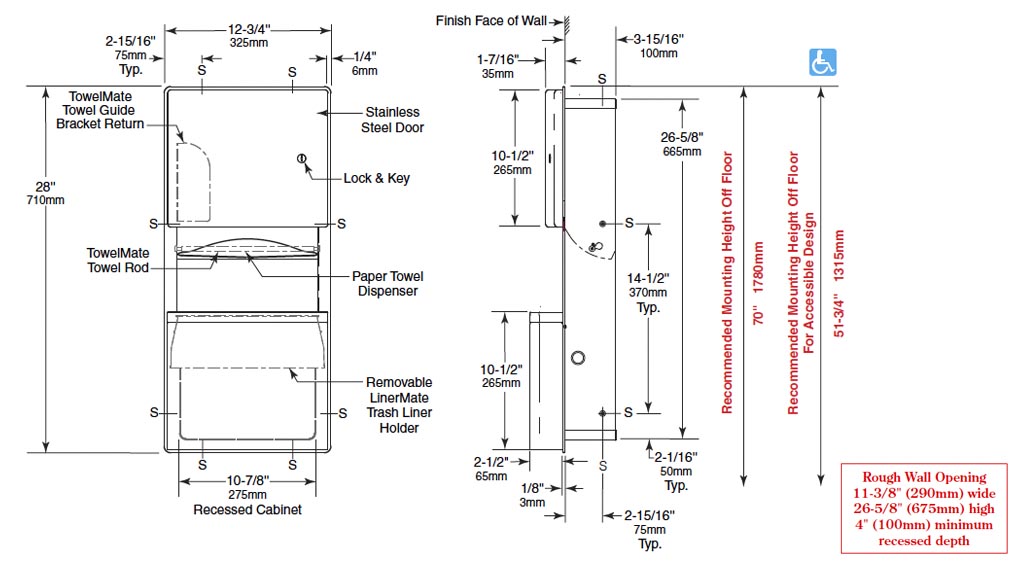

Measurement Diagram:
