This unit is a partition-mounted dual-sided multi-roll toilet tissue dispenser.
Holds four standard core toilet tissue rolls up to 5 1/8" (130mm) diameter; two for each side. Chrome-plated plastic spindles with heavy-duty internal springs. Rough Partition Opening: 11 1/2" W, 10 7/8" H (290 x 275mm). Note- It is recommended that one full toilet tissue roll remain wrapped until the other roll has been depleted to avoid wasting ends of both rolls. Satin-finish stainless steel. Mounts centered through toilet partitions, 1/2"-2" (12-50mm) thick; used from both sides.
- 18-8, Type-304, 22-gauge (0.8mm) stainless steel
- Holds four standard-core toilet tissue rolls up to 5-1/8" (130mm) diameter (1500 sheets), two for each compartment
- Spindles (4) — Chrome-plated plastic, equipped with heavy-duty internal springs.
- Theft-resistant spindles, which are removable only with special key provided. Order Part Number 283-604
- Mounts in toilet partition to serve two toilet compartments

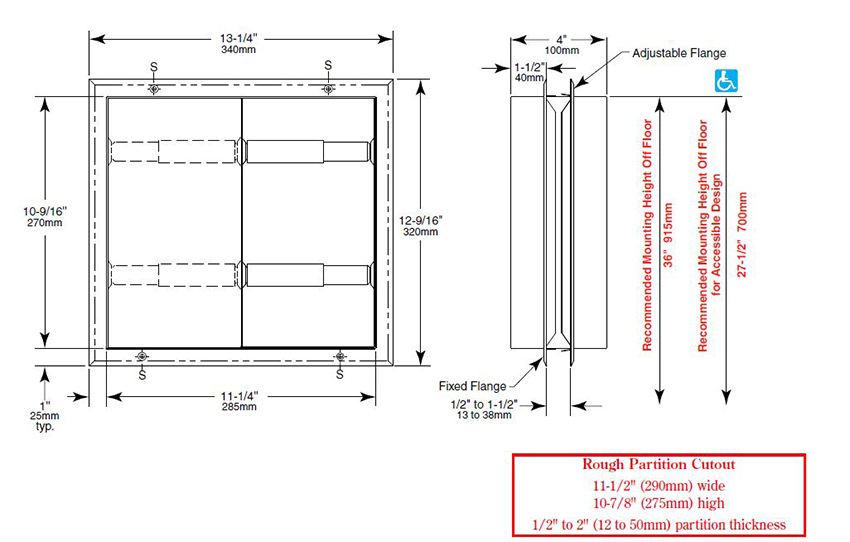

Measurement Diagram:
