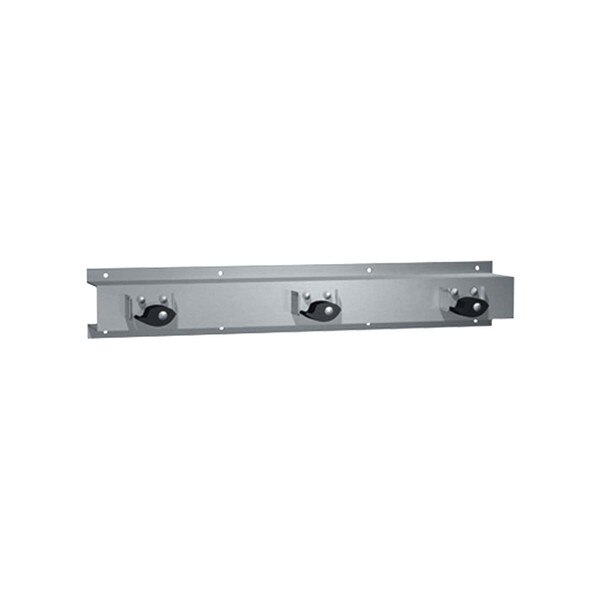

ASI 10-8215-3 Stainless Steel Mop Rack, 3 Holders, 26" Wide
Formed channel fabricated of 20 gauge, type 304 stainless steel satin finish. Projects 3 1/2″ (90 mm) from wall. Rubber cam holders ribbed for grasping.
3 holders, 26″ (660 mm) long
| Primary Material: | Stainless Steel |
| Finish: | Brushed |
| Mount: | Wall / Surface, Exposed |
| Capacity: | 3 Mop Holders |
| Overall Dimensions: | 26" Wide x 4-1/2" Tall x 3-1/2" Deep |
| Net Weight: | 3.1 lbs. |
| Shipping Dimensions: | 28" Wide x 6" Tall x 4" Deep |
| Shipping Weight: | 3.6 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Does not include mounting hardware. |
Architectural Specifications:
Mop and Broom Holder Rack shall be 20 gauge type 304 stainless steel alloy 18-8 one-piece hat channel with satin finish. Mop holder brackets shall be cadmium-plated steel and shall be ribbed for strength. Each mop holder shall have a pivoting spring loaded serrated rubber cam that shall hold round handles of 7/8" to 1-1/4" diameter [Ø22 to Ø32] wedged against ribbed clamp plate. Each mop holder shall support up to 10 lbs. (4.54 kg.).
