ASI 10-74022-SW Toilet Tissue Holder, Double, Recessed/WetWall Mount, Satin Finish

(0) No Reviews yet
$76.78
SKU: 10-74022-SW

Ships in 2 business days from manufacturer.

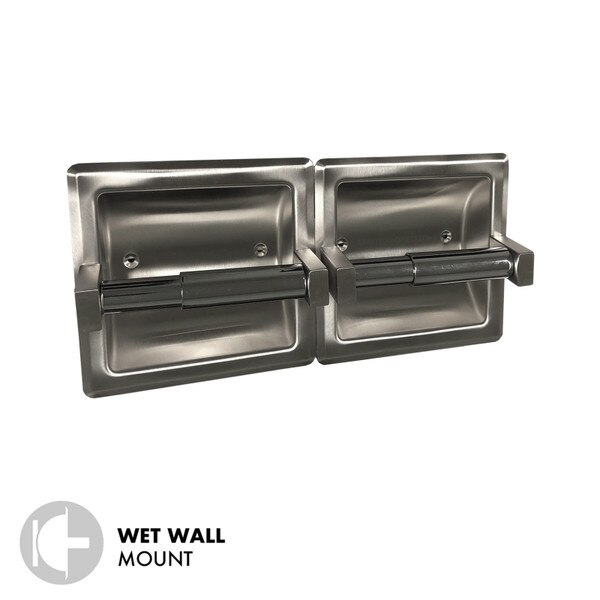

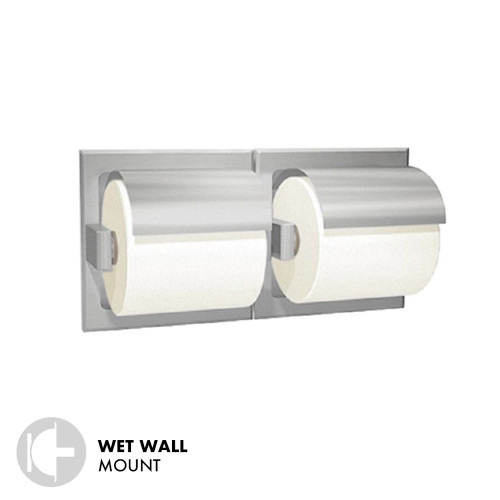

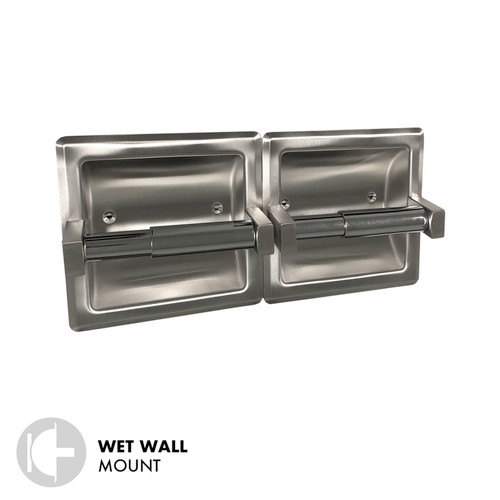

Satin Finish. Recessed Double Toilet Tissue Holder holds and dispenses all standard core roll tissue up to 6’’ diameter (Ø152) roll (holds two (2) rolls). Fabricated of stainless steel type 304 alloy 18-8. Roller is chrome plated high impact resistant ABS plastic and spring-loaded. Wet-wall version.


Type: Standard 2 roll (Side-by-Side)
Mount: Wall / Recessed
Primary Material: Frame: Stainless Steel
Spindle: Chrome Plated, high-impact resistant ABS plastic
Capacity: 2 Standard Toilet Paper Rolls (4-1/1" W x Up to 5" Dia.)
Locks: No
Overall Dimensions: 12-5/8" Wide x 6-5/16" Tall x 4-1/4" Deep
(Projects 1-15/16" out from wall)
Rough-In: 11-3/4" Wide x 5-1/2" Tall x 2-1/2" Deep
Net Weight: 1.6 lbs.
Shipping Dimensions: 13.5" Length x 7.5" Width x 4" Height
Shipping Weight: 1.8 lbs.
Warranty: Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice.
UPC / GTIN: Not published
Country of Manufacture: Not published
Buy American Act compliant
Comments: To install: Slop grout into rough wall opening. Apply grout to back of unit and on perforated lugs and push unit into opening to seat flange flush with wall face. Allow unit to set and grout to cure before use.

Architectural Specifications:



Recessed Dual Roll Toilet Paper Holder shall hold and dispense all standard core roll tissue up to 6" diameter (Ø152) roll and shall be fabricated of stainless steel type 304 alloy 18-8. Outer shells shall have two (2) perforated lugs for wet wall anchoring or two (2) dimpled holes for dry wall installation each. Rollers shall be chrome plated high impact resistant ABS plastic and shall be spring-loaded. Mounting style shall be wet wall or dry wall as chosen by option and indicated by code suffix. All exposed surfaces shall be satin or bright finish as chosen by option and indicated by code suffix.
