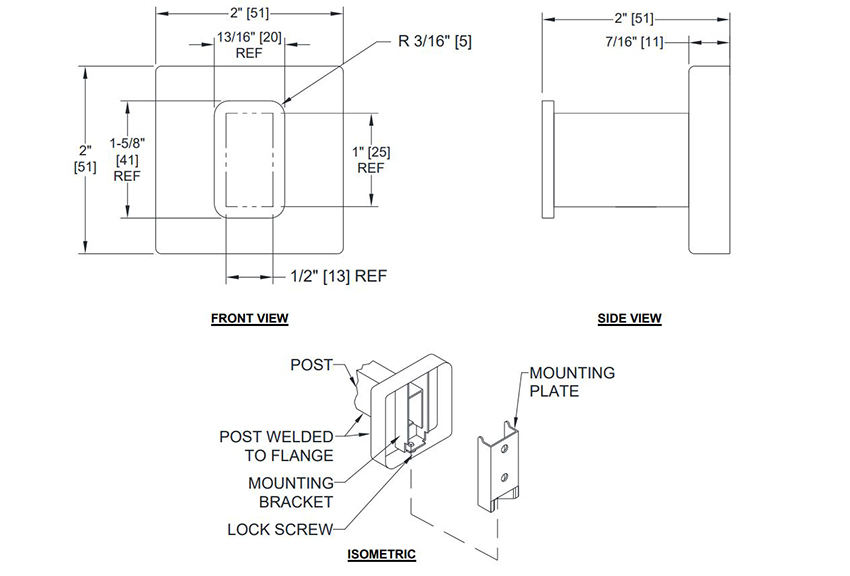

Measurement Diagram:

Architectural Specification:

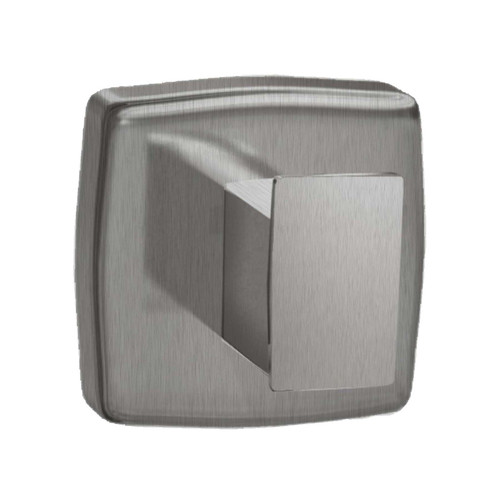

Single Robe Hook shall be fabricated of stainless steel alloy 18-8, type 304. Post shall be 22 gauge, 1/2" x 1" [13 x 25] rectangular tubing with formed 22 gauge mounting flange and bracket welded on end. Cap plate shall be 14 gauge, 3/4" x 1-1/4" [19 x 32] with radiused corners and internally welded to outer end. Mounting plate shall be included and shall be 18 gauge. A stainless steel set screw shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright, satin or white powder coated, as chosen by option and indicated by code suffix.
