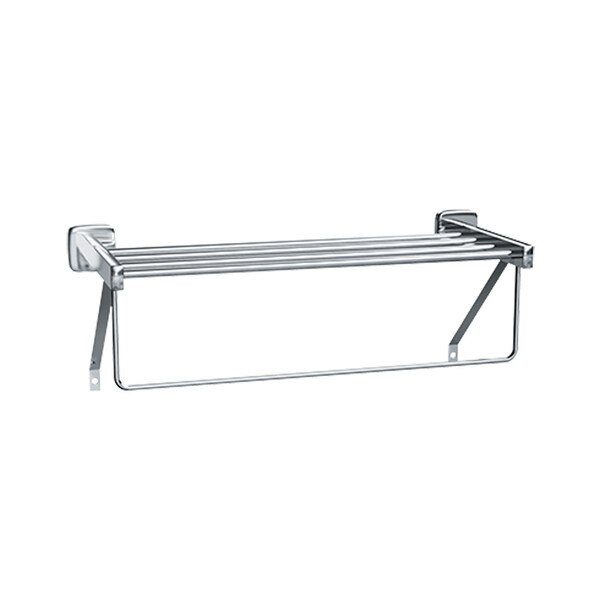

ASI 10-7310-24S Stainless Steel Towel Shelf with Drying Rod, 24" Wide, Satin Finish
8″ (203 mm) deep consisting of four 3⁄8″ (10 mm) diameter stainless steel tubes, with 1⁄4″ (6 mm) diameter stainless steel towel bar below shelf.
Overall height: 4-1⁄4″ (110 mm), 24″ Length
| Primary Material: | Stainless Steel |
| Mount: | Wall / Surface, Concealed |
| Bar Style: | Shelf Rods: 3/8" O.D. Round Dryign Rod: 1/4" O.D. Solid round |
| Rated Length: | 24" |
| Shelf Dimensions: | Approx. 24" Wide x 7" Deep |
| Overall Dimensions: | 26" Wide x 6-3/4" Tall x 8" Deep |
| Net Weight: | 1.8 lbs. |
| Shipping Dimensions: | 28" Length x 9" Width x 7" Height |
| Shipping Weight: | 2 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Surface Mounted Towel Shelf with Drying Rod and Support Brackets shall be fabricated of stainless steel alloy 18-8, type 304. Shelf posts shall be 1/2" x 1" (13mm x 25mm) rectangular tubing with formed mounting flange and bracket welded on end. Cross tubes shall be 3/8" diameter (Ø10mm) and shall be held in receiver holes in support posts. A solid stainless steel 1/4" diameter (Ø 6.4mm) drying rod shall be attached at midpoint of support posts and support brackets shall be provided. Mounting plates shall be included and shall be 18 gauge. Stainless steel setscrews shall be provided on bottom perimeter of flanges to lock unit to mounting plates. Surface finish shall be bright or satin as chosen by option and indicated by code suffix. Length shall be as chosen from schedule and indicated by code suffix.
