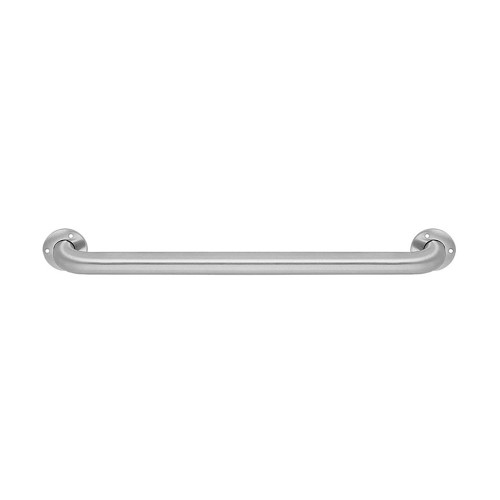

ASI 10-3401-24 Straight Grab Bar, 1-1/4" OD, 24" Long, Exposed Mount

SKU: 10-3401-24
(No reviews yet) Write a Review
$40.95
Availability:
Ships in 2 business days from manufacturer.
Adding to cart… The item has been added
Free shipping image
Important note icon

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

This exposed mount grab bar has the mounting plates welded directly to the grab bar and has no decorative flange to cover the fasteners. To install it, the grab bar is positioned, and then fasteners (not included) are used to affix it to the wall. This method is the simplest in terms of approach, can be less expensive, depending on the grab bar, and is easiest to remove in case of wall repainting or grab bar repositioning. It can also be more secure as it uses three fasteners per mounting instead of the two that are found in the concealed and snap flange mount types.
  • Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
  • Mandrell bending process ensures uniform bar diameters.
  • Heliarc welding forms a single structural unit.
  • ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
  • 1 Year manufacturer's warranty against defects in materials and workmanship.

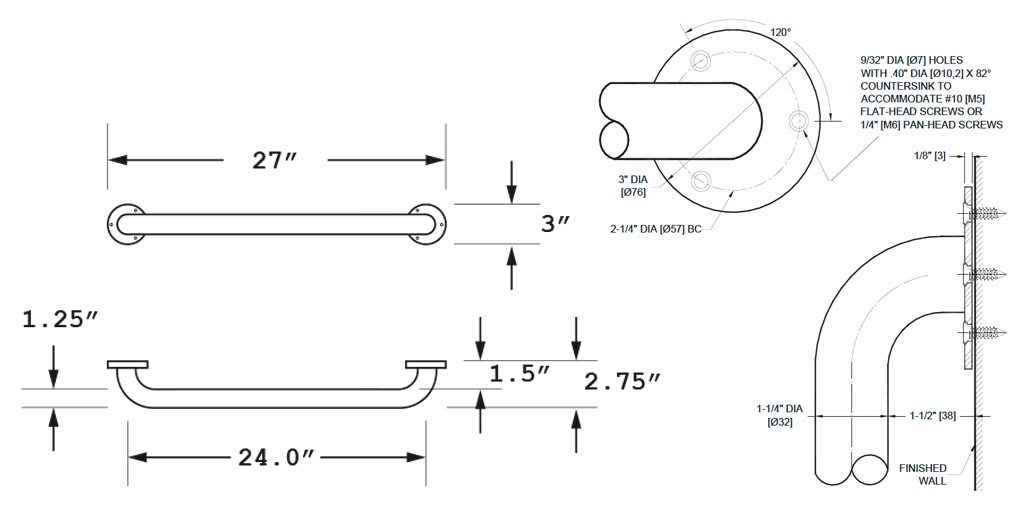

Measurement Diagram:

Measurements for ASI 10-3401-24 Grab Bar
Architectural Specification:

Grab Bar with Flanges for Exposed Mounting shall be type 304 stainless steel alloy 18-8. Tubing shall be 1-1/4" Dia [Ø32] x 18 gage. Flange shall be 11 gage 1/8" [3] thick and shall be Heliarc welded to tubing with a continuous concealed bead. Flanges shall have three (3) 9/32" Dia [Ø7] countersunk mounting holes to accommodate 1/4" Dia [Ø6] pan-head or № 10 self-threading flat-head or oval-head mounting screws (not provided). All exposed surfaces shall be satin finish and shall be protected during shipment with a plastic bag. For optional nonslip surface add suffix –P (peened).

!
