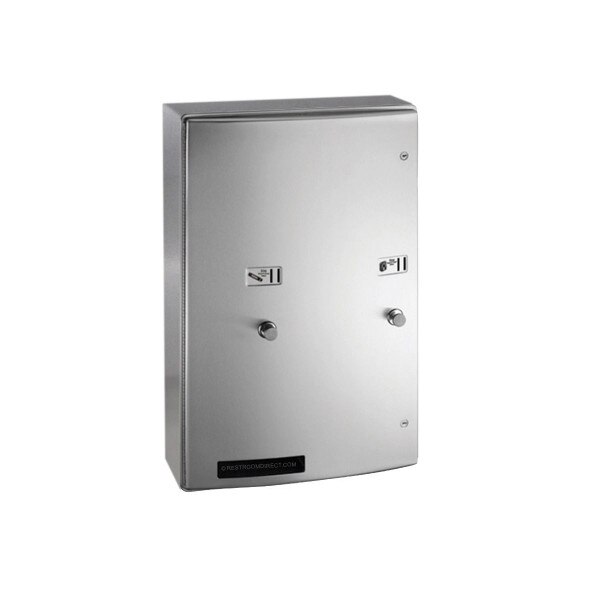

ASI 10-204684-9-F Sanitary Napkin & Tampon Dispenser, Surface Mount, Free Operation (31N/22T)
Dispenses 31 napkins and 22 tampons. Door has 18 gauge type 304 satin finish stainless steel, with 2 flush tumbler locks.
Surface mounted with stainless steel collar.
Allows Free (no coin) operation.
| Cover Material: | Stainless Steel Type 304 Alloy 18-8 |
| Mount: | Wall / Surface |
| Operation: | Manual, Free (no coin(s) required) |
| Capacity: | 31 Napkins and 22 Tampons |
| Locks: | Yes, two on outer cabinet, one on coinbox (keyed differently for security) |
| Overall Dimensions: | 16" Wide x 26" Tall x 4-1/4" Deep |
| Net Weight: | 35.5 lbs. |
| Shipping Dimensions: | 30" Length x 20" Width x 7" Height |
| Shipping Weight: | 38.2 lbs. |
Architectural Specifications:
Roval™ Collection Surface Mounted Dual Sanitary Napkin & Tampon Dispenser shall hold 31 napkins and 22 tampons of specified sizes. Cabinet full door shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Full face door shall be 18 gauge stainless steel type 304 alloy 18-8, shall be attached to cabinet with a full length 9/64" diameter (Ø3.5) stainless steel multi-staked piano hinge, shall have a stainless steel cable doorswing limiter, shall be held closed with two (2) flush rimless tumbler locks keyed alike to other ASI washroom equipment and two (2) keys shall be provided. Cabinet shall be 20 gauge same grade stainless steel. SM collar shall be 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall have a satin finish and shall be protected during shipment with PVC film easily removable after installation. Internal coin-boxes shall be keyed differently than door locks and two (2) keys shall be provided. Dispensing mechanisms shall block coin slots when product dispense tracks are empty, shall be fastener mounted internally and shall be changeable for coinage denomination without requiring additional parts. Mechanisms shall have flanged pull knobs for ADAAG and ICC/ANSI A-117.1 compliance to provide operation with a force less than 5lbs (22.2N) requiring only one (1) hand and with no tight grasping, pinching or twisting of the wrist required. Structural assembly of body and door components shall be of welded construction and shall have no exposed fasteners or welded seams. A weight shall be supplied for each feed track to ensure even product dispensing. Factory installed coin operation denomination shall be 25¢ or 50¢ or FREE as chosen by owner option at time of PO. International graphic symbols and text legend on metal gate plates identify dispense product available and required coin denomination at each pull knob. Available changeover kit denominations are 25¢ or 50¢ or FREE and coin denomination labels and gate plates are changeable by owner after installation. Owner’s Manual is supplied with each unit in carton. Unit shall be supplied with collar for surface mounting.
