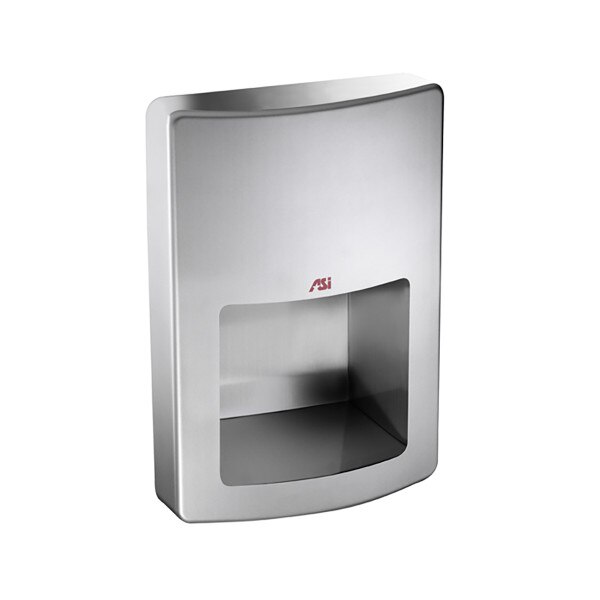

ASI 10-20199-2 ROVAL High Speed, Semi-Recessed, Automatic Hand Dryer, Stainless Steel, 220-240V
Details
The clean modular design of this hand dryer creates modern elegance and matches the complete line of ASI satin stainless steel soap dispensers, stall partitions, faucets and accessories.
Sleek modern look. Seamless face.
Semi recessed ADA compliant profile.
Quiet operation (69dB)
Durable 18 gauge stainless steel construction.
5 Year limited manufacturer's warranty
Certifications:

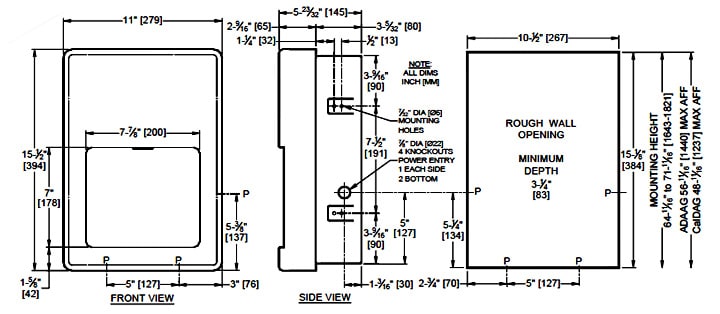

Measurement Diagram:
Alternatives:
Need a fully recessed hand dryer? See the ASI TURBO-Tuff hand dryer.
Specs
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Recessed Mount |
| Cover: | Stainless Steel, Brushed Finish |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated circular nozzle |
| Power: | 1000 Watts, 220-240V (4.17A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Single Inlet Centrifugal with Patented Flow Control |
| Airspeed: | 60 CFM, 201 MPH |
| Heating Element: | 500 Watt Nichrome wire with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 10-1/2" Wide x "14-5/8" Tall x 5-3/4" Deep (3-5/32" Recessed) |
| Shipping Dimensions: | 17" Length x 12-1/2 Width x 7-3/4" Height |
| Shipping Weight: | 20 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-20199-2 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
Architectural Specifications:
Roval™ Collection Semi-Recessed Automatic Hand Dryer operates automatically from IR sensor that activates dryer when hands are placed in sensor zone. Cabinet full panel shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Cover shall be fabricated in one piece of 18 gage (.048" [1,2]) thick type 304 stainless steel alloy 18-8. Hand drying recess shall be same grade and gage. All exposed surfaces shall have a satin finish and shall be protected during shipment by PVC film easily removable after installation. Cabinet shall be 20 gage corrosion protected steel with a 1/2" [13] wide perimeter trim to lay flush against wall and shall have concealed pin-hex security screws to close cover. Motor and heating element shall have internal resetting automatic thermal protection. Fixed directional air vanes shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for five (5) years. Mounting Template (MT) and Owner's Manual (OM) provided with unit.
