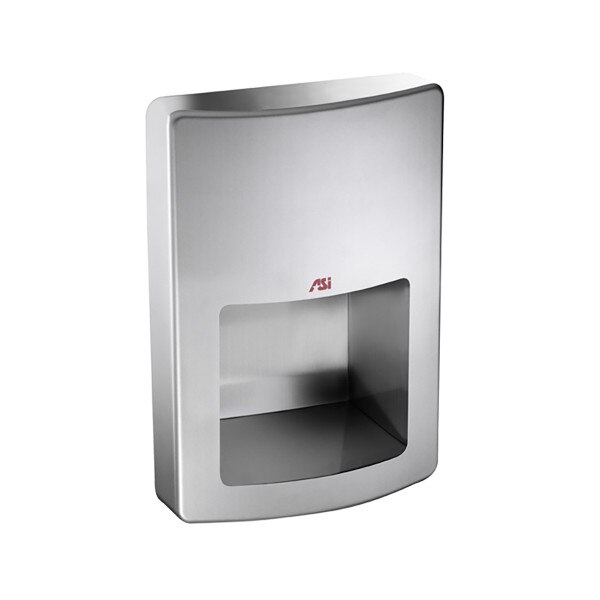

ASI (10-20199-1) ROVAL High Speed, Semi-Recessed, Automatic Hand Dryer, Stainless Steel, 110-120V

(0) No Reviews yet
SKU: 10-20199-1


4 available for immediate shipment

The clean modular design of this hand dryer creates modern elegance and matches the complete line of ASI satin stainless steel soap dispensers, stall partitions, faucets and accessories.

Sleek modern look. Seamless face.

  • Semi recessed ADA compliant profile.

  • Quiet operation (69dB)

  • Durable 18 gauge stainless steel construction.

  • 5 Year limited manufacturer's warranty

  • Certifications:

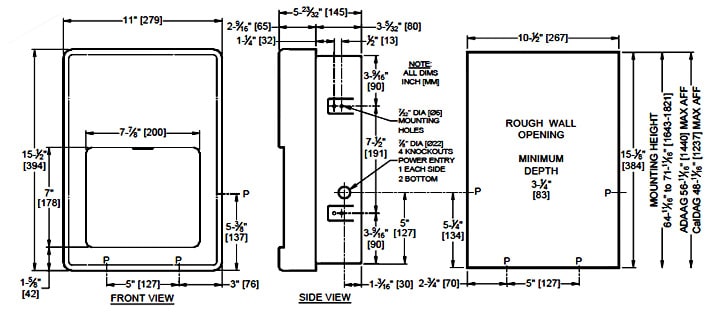

    Measurement Diagram:


    Need a fully recessed hand dryer? See the ASI TURBO-Tuff

    Reported Dry Time: Less than 15 Seconds
    Mount: Wall / Recessed
    Cover: Stainless Steel, Brushed Finish
    Nozzle: Concentrated circular nozzle
    Activation: Automatic (infra-red) hands-free (self calibrating)
    Power: 1000 Watts, 110-120V (8.33A), 50/60Hz
    Motor: Brush type, dual ball bearings
    Fan: Single Inlet Centrifugal with Patented Flow Control
    Airspeed: 60 CFM, 201 MPH
    Reported Sound Level: 66 dB-A @ 2M
    Heating Element: 500 Watt Nichrome wire with auto reset circuit breaker
    Filter: None
    IP Rating: Not published
    Product Dimensions: 10-1/2" Wide x "14-5/8" Tall x 5-3/4" Deep (3-5/32" Recessed)
    Product Weight: 18 lbs.
    Shipping Dimensions: 17" Length x 12-1/2 Width x 7-3/4" Height
    Shipping Weight: 20 lbs.
    UPC / GTIN: Not published
    Manufacturer's Part No.: 10-20199-1
    Country of Manufacture: Taiwan

    Architectural Specifications:


    Roval™ Collection Semi-Recessed Automatic Hand Dryer operates automatically from IR sensor that activates dryer when hands are placed in sensor zone. Cabinet full panel shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Cover shall be fabricated in one piece of 18 gage (.048" [1,2]) thick type 304 stainless steel alloy 18-8. Hand drying recess shall be same grade and gage. All exposed surfaces shall have a satin finish and shall be protected during shipment by PVC film easily removable after installation. Cabinet shall be 20 gage corrosion protected steel with a 1/2" [13] wide perimeter trim to lay flush against wall and shall have concealed pin-hex security screws to close cover. Motor and heating element shall have internal resetting automatic thermal protection. Fixed directional air vanes shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for five (5) years. Mounting Template (MT) and Owner's Manual (OM) provided with unit.
