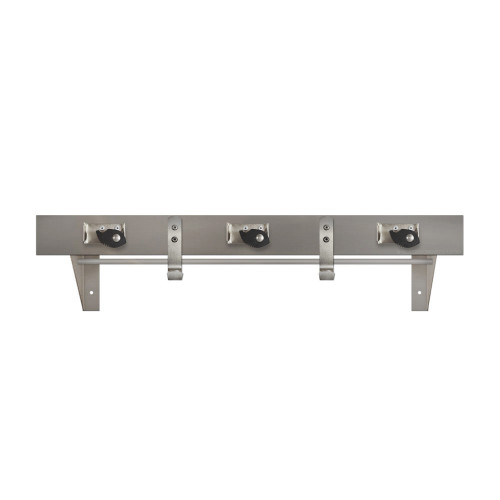

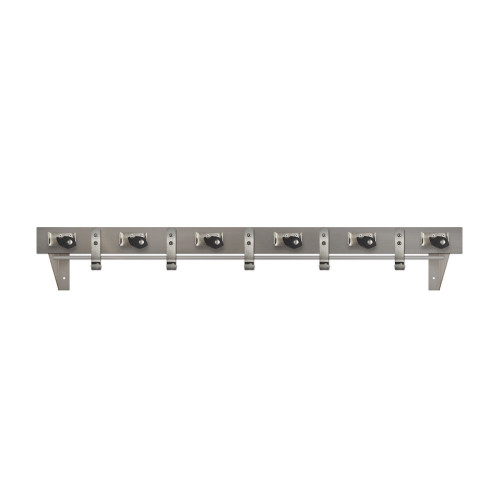

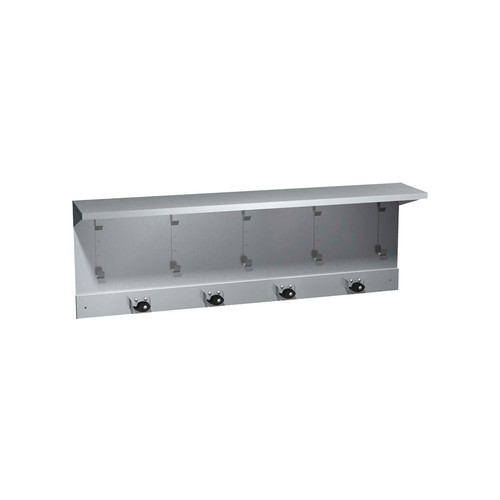

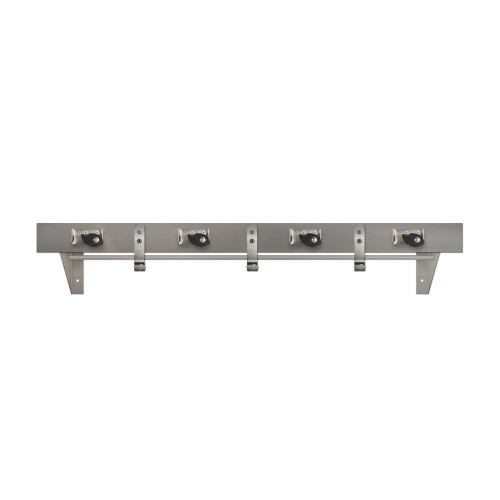

Fabricated of type 304 satin finish stainless steel, this shelf is 8″ (203 mm) deep with 3/4″ (19 mm) return for rigidity. Mop holders are riveted to strip, and rubber cam is ribbed for grasping. Rod and hooks for wet rags are included. 4 mop holders/3 rag hooks, 36″ (914 mm)
Architectural Specification:
Utility Shelf with Mop Holders, Drying Rod and Rag Hooks shall be fabricated of 18 gauge type 304 stainless steel alloy 18-8. Utility shelf shall have 2-1/2" [65] wide hemmed-in edge all around and length shall be as per schedule below. Rubber-cam mop-holders shall be provided at the face of shelf in quantity listed in schedule below. Mop holder brackets shall be fabricated of cadmium plated steel and shall be ribbed for rigidity. Each mop holder shall have a pivoting spring loaded serrated rubber cam that shall hold round handles of 7/8" to 1-1/4" diameter [Ø22 to Ø32] wedged against ribbed clamp plate. A 3/8" diameter [Ø10] stainless steel drying rod shall be provided to run between the mounting bracket gussets. Mounting brackets shall be 16 gauge. All exposed surfaces shall be satin finish and be protected during shipment with a PVC film easily removable after installation. Number of mop holders and length of unit shall be as specified in standard schedule.
