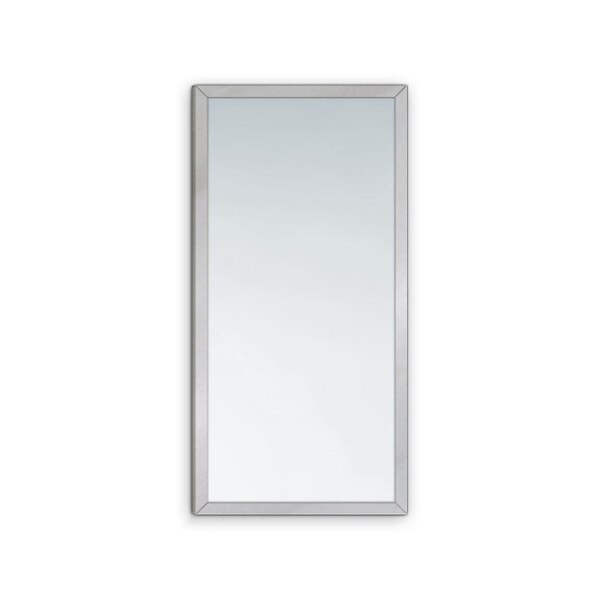

ASI (10-0620-1836) Plate Glass Mirror with Stainless Steel, Chan-Lok Frame, 18" W x 36" T

(0) No Reviews yet
1 – 1$314.00
2 – 2$193.00
3 – 3$147.45
4 +$122.94
SKU: 10-0620-1836

This product will ship from the manufacturer in about 2days.

½” x ½” (13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one-piece roll formed member that encases mirror and backing revealing a tight mitered corner. Mirror is installed on two wall brackets and held secure by theft-resistant screws.

0620-1836 – 18” wide x 36” high (457 x 914 mm)

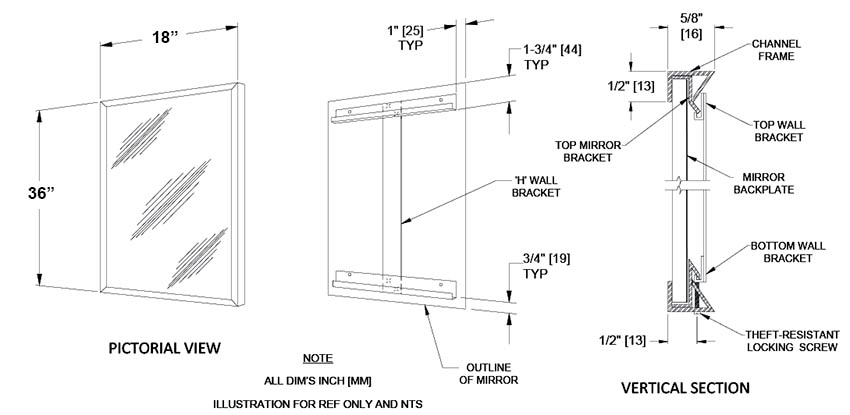

Measurement Diagram:

Brand: ASI
Manufacturer Model No.: 10-0620-1836
Mount: Flat
Frame Material: Satin Stainless Steel
Frame Type: Channel Frame (Chan-Lok)
Glazing: 1/4" Plate Glass
Overall Dimensions: 18" Wide x 36" Tall x 5/8" Deep
Shipping Dimensions: 40" Length x 22" Width x 4" Height
Shipping Weight: 32.4 lbs.
UPC / GTIN: Not Published
Country of Manufacture: USA
Warranty: 15 Yr. Against Silver Spoilage

Architectural Specifications:


Channel Frame Mirror shall have frame of 20 gauge type 304 stainless steel alloy 18-8, with mitered corners. Mirror glazing shall be _____ (insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be 20 gauge corrosion protected steel and shall be spot welded into “H” hanger. Mirror shall be secured to lower bracket with a Phillips Pan Head locking screw.
