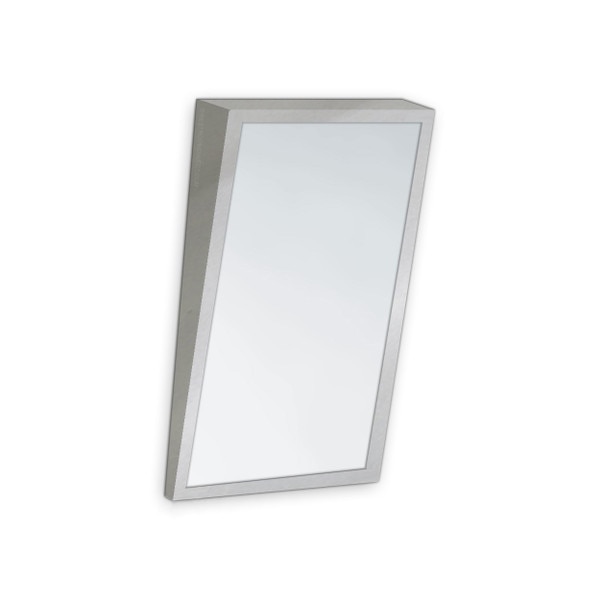

ASI (10-0535-1630) Mirror, Fixed Tilt, Stainless Steel Frame, 16" W x 30" T ( 4"D@Top, 1" D@Bot)

(0) No Reviews yet
SKU: 10-0535-1630

This product will ship from the manufacturer in about 2days.

Top extends 4" away from the wall and gradually decreases down to 1" out at the bottom.

Offers visibility for wheelchair patients. Frame fabricated of 20 gauge stainless steel with a satin finish. Mirror is tapered from 4″ (102 mm) at top to 1″ (25 mm) at bottom.
> 0535-1630 – 16” wide x 30” high (406 x 762 mm)

Measurement Diagram:

Brand: ASI
Manufacturer Model No.: 10-0535-1630
Mount: Fixed Tilt
Frame Material: Satin Stainless Steel
Frame Type: Angle Frame (Mitred Corners)
Glazing: 1/4" Plate Glass
Overall Dimensions: 16" Wide x 30" Tall
4" Deep at Top, 1" Deep at Bottom
Shipping Dimensions: 34" Length x 20" Width x 6" Height
Shipping Weight: 21.5 lbs.
UPC / GTIN: Not Published
Country of Manufacture: USA
Warranty: 15 Yr. Against Silver Spoilage

Architectural Specifications:


Fixed Angle Tilted Mirror shall be fabricated of alloy 18-8 stainless steel, type 304, 20 gauge. Face shall be one piece construction free of miters or spot welded seams. All exposed surfaces shall have No 4 satin finish and be protected during shipment by plastic PVC film easily removable after installation. Concealed tamper resistant locking devices shall be provided. Mirror shall be _______(INSERT GLAZING OPTION) and shall be warranted for 15 years against silver spoilage. Mirrors shall be supplied as standard with glazing option ‘ A ´. For a complete description and other choices of glazing options, see the Mirror Glazing OPTIONS Chart.
