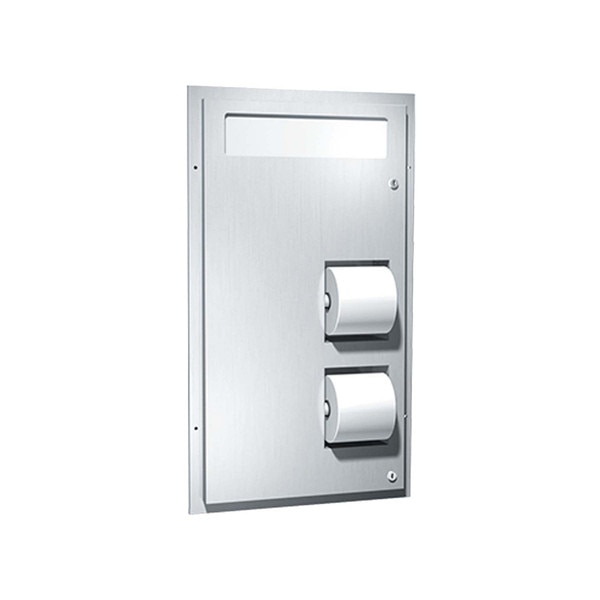

ASI 10-0484-HC Partition Mount, Dual Access, Toilet Seat Cover & Toilet Paper Dispenser, 1 Sd ADA
Details
Holds and dispenses 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper rolls.
One side mounts flush to partition of barrier-free side to allow for grab bar. Usable both sides but serviced from one side. Access door is opposite HC stall. Internal baffles prevent line of sight view from either side through unit at any time.
Cabinet door is held closed with two (2) tumbler locks. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] (supplied).
Specs
| Cover Material: | Stainless Steel |
| Mount: | Partition / Two Sided |
| Dispensed Items: | Toilet Paper / Toilet Seat Covers |
| Capacity: | 1000 Paper Seat Covers 4 standard rolls up to 5-1/4" diameter (1800 sheets) |
| Locks: | Yes |
| Overall Dimensions: | 17-3/8" Wide x 30-5/8" Tall x 4-1/4" Deep (Accomodates partitions 1/2" to 2" thick.) |
| Rough-In: | 15-1/2" Wide x 28-7/8" Tall |
| Net Weight: | 19.7 lbs. |
| Shipping Dimensions: | 34.6" Length x 21.6" Width x 6" Height |
| Shipping Weight: | 23.7 lbs. |
| Comments: | Seat covers are self-feeding until supply is depleted. Toilet paper rolls feed freely until depleted and level of supply is constantly visible for low-level warning. Locked door prevents unauthorized removal. |
Architectural Specifications:
Partition Mounted Dual Access Seat Cover and Toilet Paper Dispenser for Barrier Free Access shall hold and dispense 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper rolls. Seat dispenser and toilet paper dispenser door shall be 18 gauge type 304 stainless steel alloy 18-8. Face frame and cabinet shall be 22 gauge. All exposed surfaces shall have satin finish protected during shipment with PVC plastic film easily removed after installation. Face trim mounting flanges shall be of one piece construction 1" (25) wide with no welded miters and shall have square 1/4" (6) returns with an adjustability range for partition thickness of 1/2" to 3-3/4" (13 to 95). Flange on HC panel side of unit shall be flush with face of unit to permit flush mounting behind grab bar. Access door shall be opposite HC stall. Seat cover dispensing slot shall have fully deburred flat edges for snag-free dispensing and user safety. Internal baffles shall prevent line of sight view from either side through unit at any time. Cabinet door shall be attached to face frame with a full-length, heavy-duty 3/16" diameter (Ø5) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Cabinet shall include theft and vandal resistant rollers that shall be of molded high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] shall be supplied. Structural assembly of cabinet and door components shall be of welded construction and shall have no exposed fasteners.
