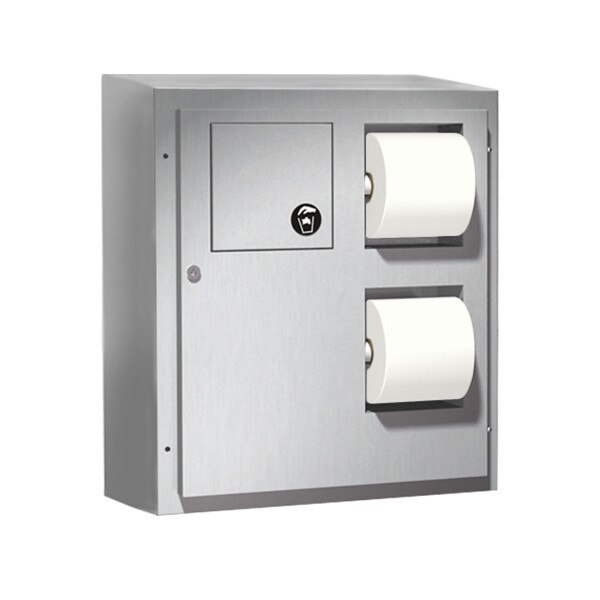

ASI 10-04833 Surface Mount Toilet Tissue Dispenser with Sanitary Napkin Disposal, Stainless Steel
Holds and dispenses two (2) rolls standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Waste capacity of 300 cubic inches (.005m3 ) or 1.3 gal (4.9 liters). Includes stainless steel collar for surface mounting.
Toilet paper dispenser/disposal door is held closed with a tumbler lock. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and two (2) rollers [p/n R-004] (supplied).
| Cover Material: | Stainless Steel |
| Mount: | Wall Mount / Surface Mount |
| Dispensed Items: | Toilet Paper |
| Capacity: | Holds 2 standard rolls up to 5-1/4" diameter (1800 sheets) |
| Waste Bin Capacity: | 1.3 Gal. |
| Locks: | Yes |
| Overall Dimensions: | 17-5/8" Wide x 20" Tall x 4-1/2" Deep |
| Net Weight: | 14.4 lbs. |
| Shipping Dimensions: | 24" Length x 21-3/8" Width x 6" Height |
| Shipping Weight: | 16.4 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Push self-closing disposal door to deposit waste material. Toilet paper rolls feed freely until depleted and level of supply is constantly visible for low-level warning. Waste receptacle is emptied manually on cycle determined by maintenance needs. |
Architectural Specifications:
Surface Mounted Toilet Paper Dispenser with Sanitary Napkin Disposal shall hold and dispense two (2) rolls standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper and shall have a waste capacity of 300 cubic inches (.005m3 ) or 1.3 gal (4.9 liters). Frame, cabinet, toilet paper dispensers and surface mounting collar shall be fabricated of 22 gauge type 304 stainless steel alloy 18-8. Door shall be 18 gauge. All exposed surfaces shall have No 4 satin finish and be protected by PVC film easily removed after installation. Disposal door shall be hung on spring-tensioned hinges and shall have international graphic waste disposal symbol. Toilet paper dispenser/disposal door shall be attached to cabinet at side with a full-length 3/16" diameter (Ø5) stainless steel multistaked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Removable, vandalproof stainless steel waste container shall have finger grip for easy maintenance and hemmed edges for safety. Face trim shall be 1" (25) wide formed from one piece with no miters, welding or open seams and have 1/4" (6) square return to front of surface mounting collar (supplied). Structural assembly of all components shall be of welded construction. Cabinet shall include theft and vandal resistant rollers that shall be of molded high-impact resistant plastic with integral molded-in stainless steel endpins and two (2) rollers [p/n R-004] shall be supplied.
