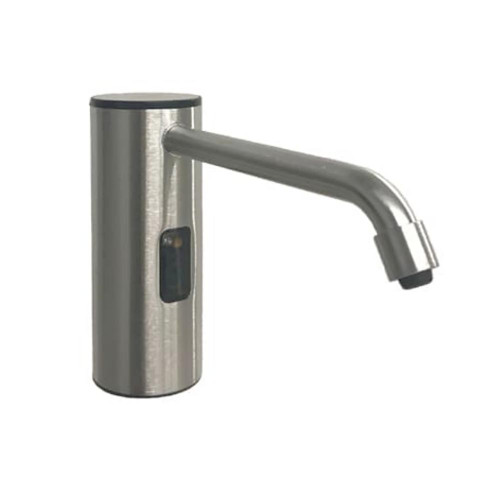

TOUCHLESS OPERATION: A single shot of foam soap or foam hand sanitizer is automatically dispensed by a battery powered mechanism when hands are placed in the sensor zone.
Dispenser body is type 304 stainless steel with a satin finish. An indicator LED shall provide status notification of battery condition, contents level and condition, and user sensor detection. Supply tank installed under vanity is clear with graduated markings to continuously provide contents level indication.
Soap and Hand Sanitizer Requirements: Proper usage of this dispenser requires, that only soap or hand sanitizer within the following range for viscosity and pH may be used.
Viscosity Range (mPa·s or cP): 5-1.5k
pH Range: 5.5 ~ 8.5
Dispenser body is type 304 stainless steel with a satin finish. An indicator LED shall provide status notification of battery condition, contents level and condition, and user sensor detection. Supply tank installed under vanity is clear with graduated markings to continuously provide contents level indication.
Soap and Hand Sanitizer Requirements: Proper usage of this dispenser requires, that only soap or hand sanitizer within the following range for viscosity and pH may be used.
Viscosity Range (mPa·s or cP): 5-1.5k
pH Range: 5.5 ~ 8.5
- Powered by 4 AA-size batteries (not included) or optional AC adapter (72-ACA, not included).
- Capacity: 50.7 oz. (1500 ml) of foam soap or foam hand sanitizer.
Measurement Diagram:
