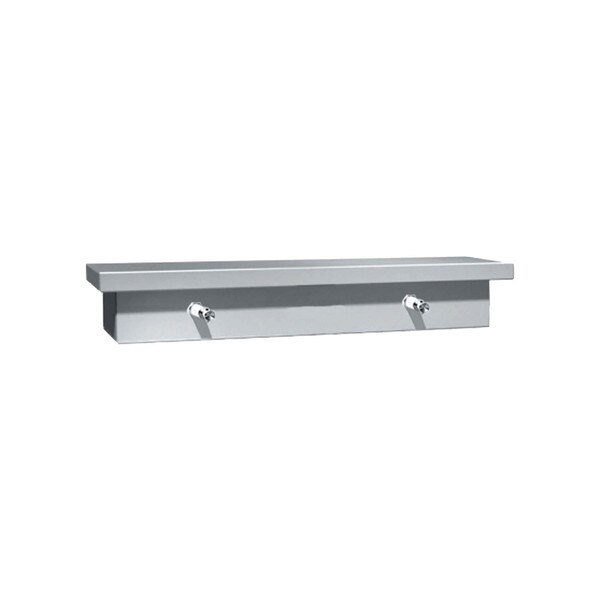

ASI 10-0318-A Combination Shelf and Liquid Soap Dispenser, Surface Mount, 2 Pumps
Holds and dispenses 83 oz or 2.6 quarts (2.5 liters) of liquid and lotion soaps, synthetic detergents and antibacterial soaps. Shelf/cover held closed with a concealed latch.
Includes two (2) all-purpose soap valves for mounting between lavatories.
Soap is manually dispensed by pushing valve button until supply is depleted. Unit may be reloaded easily by opening hinged shelf/cover. Tank supply is replenished manually.
>Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 2500
>pH Range: 5.5 ~ 8.5
| Mount: | Wall / Surface, Concealed |
| Operation: | Push Button |
| Primary Material: | Stainless Steel |
| Shelf Dimensions: | 17-3/8" Wide x 5-1/16" Deep |
| Soap Type: | Liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan |
| Capacity: | 83 oz. |
| Dispense Amount: | Not published |
| Overall Dimensions: | 17-3/8" Wide x 3-7/16 Tall x 5-1/16" Deep |
| Net Weight: | 4.8 lbs. |
| Shipping Dimensions: | 19" Length x 7" Width x 4" Height |
| Shipping Weight: | 5.3 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit may be reloaded easily by opening hinged shelf/cover. Mounting fasteners not included. |
Architectural Specifications:
Combination Soap Dispenser and Shelf shall hold and dispense 83 oz or 2.6 quarts (2.5liters) of liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan. Dispenser tank and shelf/cover shall be type 304 stainless steel alloy 18-8. Holding tank shall be fabricated as a welded integral unit; tank and shelf/cover shall be 18 gauge. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Shelf/cover shall be held closed with a concealed latch. Each valve operation shall comply with 2010 ADA Accessibility Standards by requiring no more than 5 lbsf (22.2 Newtons) pressure to actuate and require no grasping or twisiting by operator. Valve shall have a chrome-plated brass body with stainless steel, rubber and plastic internal parts.
