  • ASI (10-0030) Toilet Tissue Dispenser, Twin Hide-A-Roll, Surface Mounted

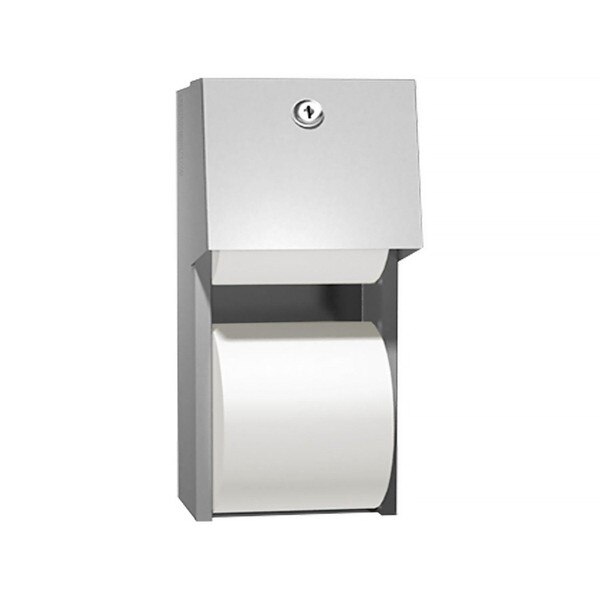

ASI (10-0030) Toilet Tissue Dispenser, Twin Hide-A-Roll, Surface Mounted

(0) No Reviews yet
SKU: 10-0030


65 available for immediate shipment

Holds two rolls up to 5 1/4″ (133 mm) diameter (1800 sheets). Top roll automatically drops in place when bottom roll is used up. Type 304 stainless steel cabinet and mechanism. Theft resistant spindles.

  • Heavy duty vandal resistant construction.

  • Second roll drops down automatically when first roll is depleted.

  • Uses standard ASI E114 key.

  • Replaceable spindles.

Type: Standard Roll
Mount: Wall / Surface
Primary Material: Stainless Steel (Brushed Finish)
Locks: Yes, one tumbler
Overall Dimensions: 6" Wide x 12" Tall x 6-1/2" Deep
Net Weight: 4.8 lbs.
Shipping Weight: 5.3 lbs.
Warranty: 1 Year Limited

Architectural Specifications:


Surface Mounted Twin Hide-A-Roll Toilet Paper Dispenser shall hold and dispense two (2) standard or two (2) 5-1/4" Dia. [Ø133] 1800 sheet tissue rolls and shall have door of 18 gage [1,3] type 304 stainless steel alloy 18-8. Cabinet body and dispensing mechanism shall be 22 gage [0,8] same grade. All exposed surfaces shall be satin finish and be protected during shipment with PVC easily removable after installation. Internal mechanism levers shall be molded high-impact resistant plastic for smooth operation. Structural assembly of body and door components shall be of welded construction. Door hinge shall be heavy-duty stainless steel 3/16" Dia [Ø4,8] rivets. Door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Cabinet shall include two (2) theft and vandal resistant rollers (p/n R-004) that are molded highimpact resistant plastic with integral molded-in plated steel endpins.
