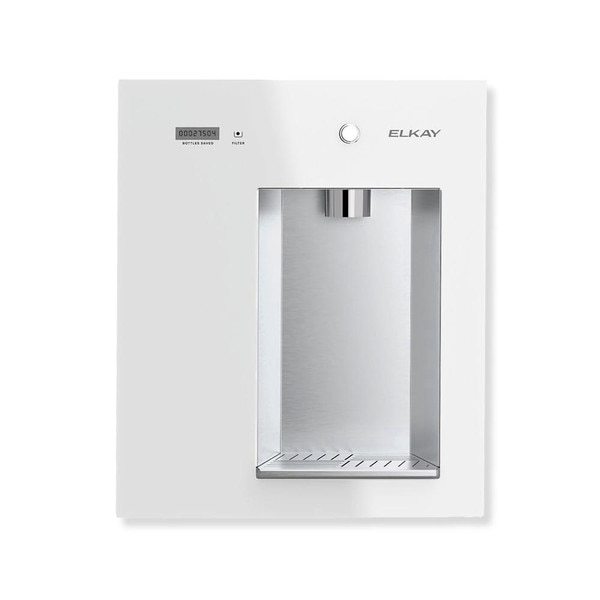

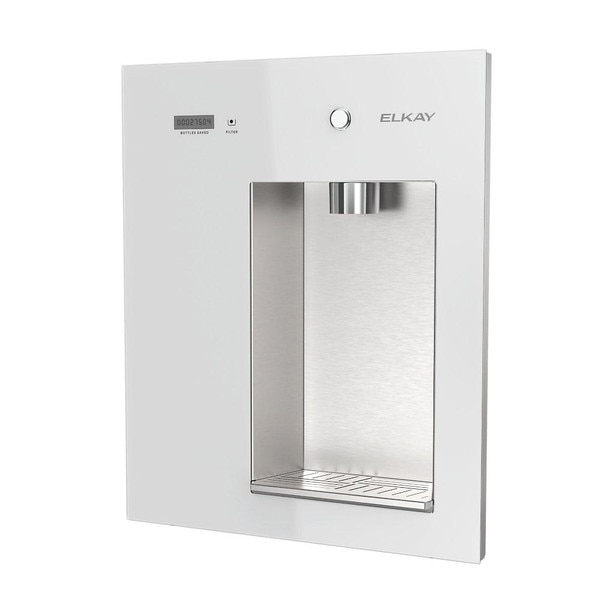

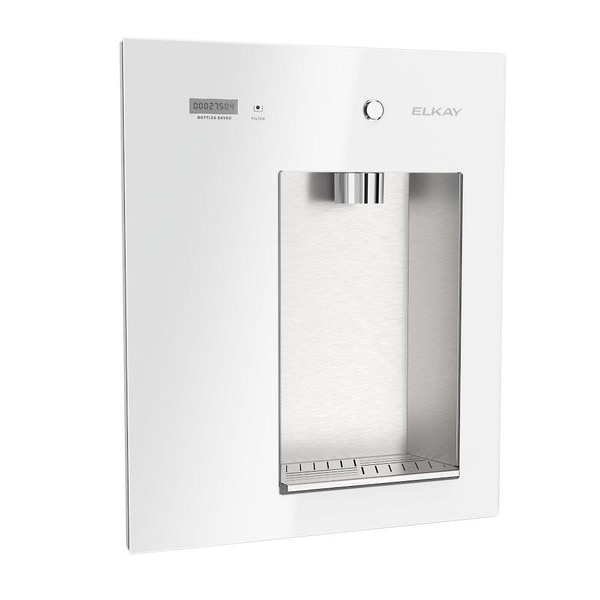

Elkay LBWDM0WHBC ezH2O Liv Mechanical Filtered RESIDENTIAL Bottle Filling Station (Aspen White, NON-refrigerated)
Details
 | This bottle filler is MECHANICALLY operated. Which means NO POWER IS REQUIRED making installation easier than ever. |
Distinguishing Features: Residential Version • Aspen White • PFOA/PFOAS Filtration • Mechanical
This bottle filler has been redesigned to be easier than ever to install. The only thing required is a water supply. No electrical. Even the drain connection is optional as there is an easily emptied drip tray included.
And with all the news about microplastics, lead, and other contaminants, the WaterSentry 71300C PFOA/PFOS (POAS) filter included will give you peace of mind, knowing that these threats guarded against to stringent NSF/ANSI certification standards.
Elkay’s Liv EZ filtered water dispenser for homes redefines convenience with its user-friendly operation, stunning design, and hassle-free installation. It’s ideal for busy families and people who love entertaining, with endless uses such as filling single-brew coffee makers, watering cans for plants and pet bowls. And say goodbye to trips to the store for disposable bottled water that takes up precious storage space.
BUILT-IN DESIGN: Install a filtered water dispenser in convenient areas of the home, inside and outside the kitchen. Perfect for new construction or remodels.
EASY INSTALLATION: Fits within the standard 16" stud width and depth and requires no electrical wiring. Also includes drip tray with optional drain connection.
FILTERED WATER: PFOA/PFOS-certified filter reduces forever chemicals, lead, micro-plastics and other harmful contaminants, for added assurance of healthier and great-tasting water.
SIMPLE FILTER STATUS LIGHT: Indicates when quick and easy filter change is needed.
BOTTLES SAVED: LED Green Ticker counts the number of disposable, single-use plastic bottles served without the plastic bottle waste.
RELIABLE: Mechanically-Activated unit continues to supply water in event of service disruptions.
The included filter is tested and certified to NSF/ANSI 42, 53 and 401 for the reduction of PFOA and PFOS (two prevalent PFAS chemicals), lead, microplastics, Class 1 particulate, cysts, and chlorine taste and odor. 2,250 gallon capacity or 1 year after installation.
Certifications:
Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Recessed |
| Operation: | Push Button |
| Basin(s): | Stainless Steel Alcove with Removable Drip Tray |
| Cabinet(s): | White Glass Fascia |
| Bubbler(s): | None |
| Cooled: | No |
| Filtered: | Yes | Replacement filter 71300C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 16-3/4" Wide x 20-1/2" Tall x 4-9/16" Deep |
| Rough-in: | Main Unit: 19-1/2" Tall x 14-1/2" Wide x 3-7/8" Deep Filter Drawer: 6-5/8" Tall x 14-1/2" Wide x 6-5/8" Tall x 3-5/16" Deep |
| Shipping Dimensions: | 20-1/2" Length x 16-3/4" Width x 4-9/16" Height |
| Shipping Weight: | 29 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | LBWDM0WHBC |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Code Compliance: NSF 401, NSF 372 (lead free), NSF 61, NSF 53, NSF 42, ADA & ICC A117.1 |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Liv® EZ Mechanical Built-in Filtered Water Dispenser Non-refrigerated Aspen White. Features shall include Mechanically-Activated, Green Ticker™, Ambient Water, Filtered, Laminar Flow, battery operated. Mechanical Bottle Filler Button activation. Product shall be Built-in, for Indoor applications, serving 1 station(s).
