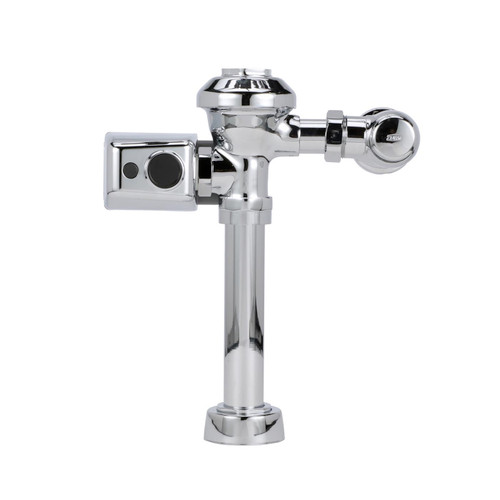

Aquaflush® sensor operated chrome plated flushometer valve for urinals. Quiet diaphragm-type, with chemical resistant gaskets and seals for extended service life with lower maintenance costs. 0.125 GPF (Gallons per Flush). Clog-resistant linear bypass diaphragm. (Non-mechanical) flush override button.
- Chrome-plated metal E-Z Flush sensor unit with 3-year battery life
- Control Stop has internal siphon-guard protection and vandal resistant stop cap, Sweat solder kit, wall flange with set screw
- High back pressure Vacuum Breaker with one piece hex coupling nut
- Chloramine resistant Internal seals
- Adjustable tailpiece
- Zurn Limited 3-year warranty
Certifications:

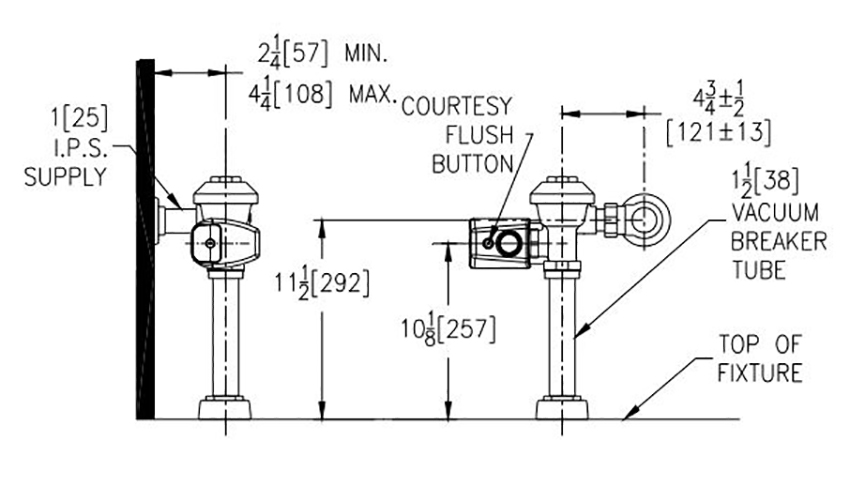

Measurement Diagram:

Architectural Specification:
Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with chloramine resistant, dual seal Zurn’s AquaFlush® TPE diaphragm with a clog resistant by-pass. The valve incorporates a 6VDC motor actuator, a battery powered automatic sensor and chrome plated metal cover with manual override push button.
Warnings:
