The Z6913-XL-MV features a mixing valve for concealed temperature control.
- Concealed temperature mixing valve senses pressure changes from either hot or cold inlets and restricts water flow to control temperature, increasing comfort and preventing scalding injuries
- Water-efficient and vandal-proof 1.5 gpm aerator with 30-second timeout feature saves water and money
- Battery-powered faucet uses 4 standard AA batteries, (included)
- Lead-free cast brass appliance with a chrome-plated finish provides durability while complying with the Safe Water Drinking Act
- In-line filter, and included mounting hardware, simplify installation
- Recommended through hole diameter for proper spout mounting is 1-1/8" to 1-1/4"

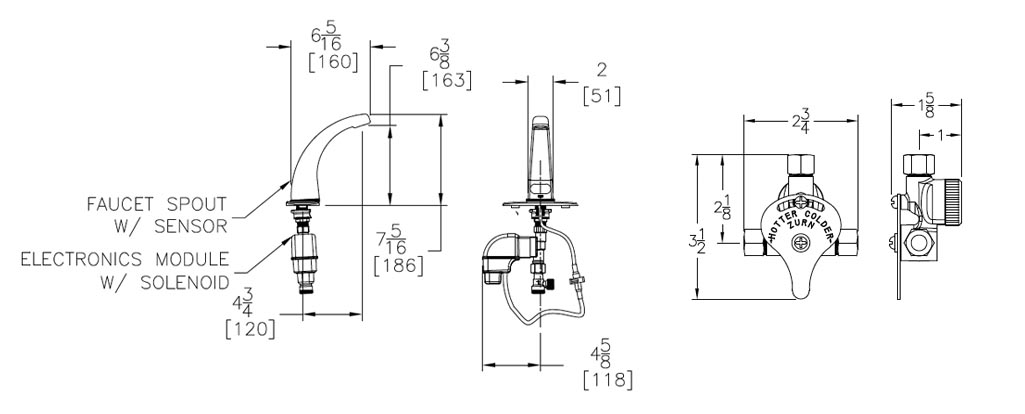

Measurement Diagram:
