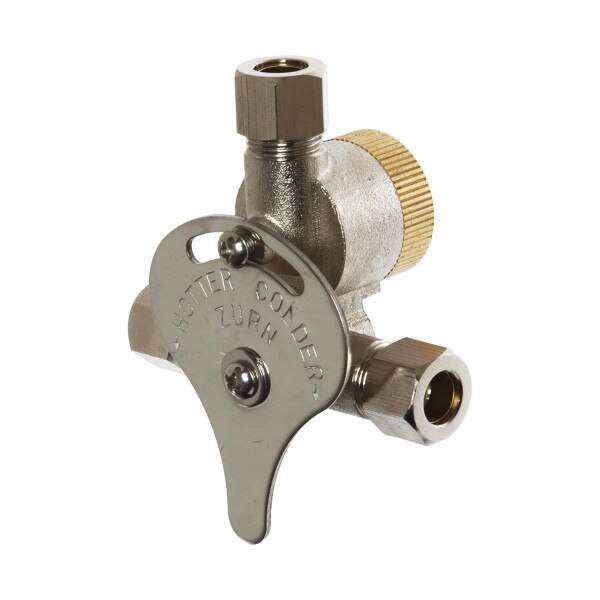

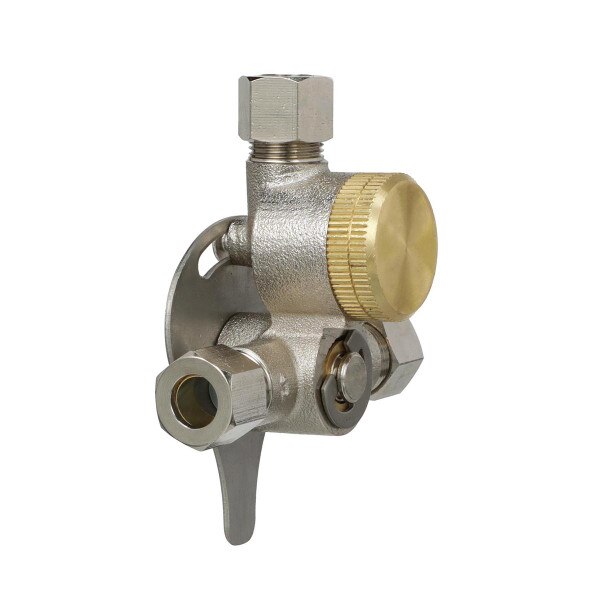

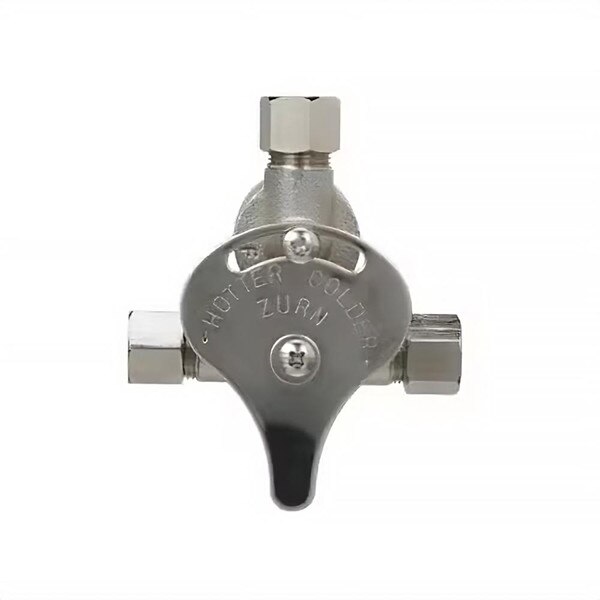

Zurn P6900-XL-MV Manual Mixing Valve
This mixing valve with filter provides below deck water tempering. The valve is furnished with an integral filter, two back checks, and 3/8" compression fitting inlets and outlets. See Specs tab for compatibility.

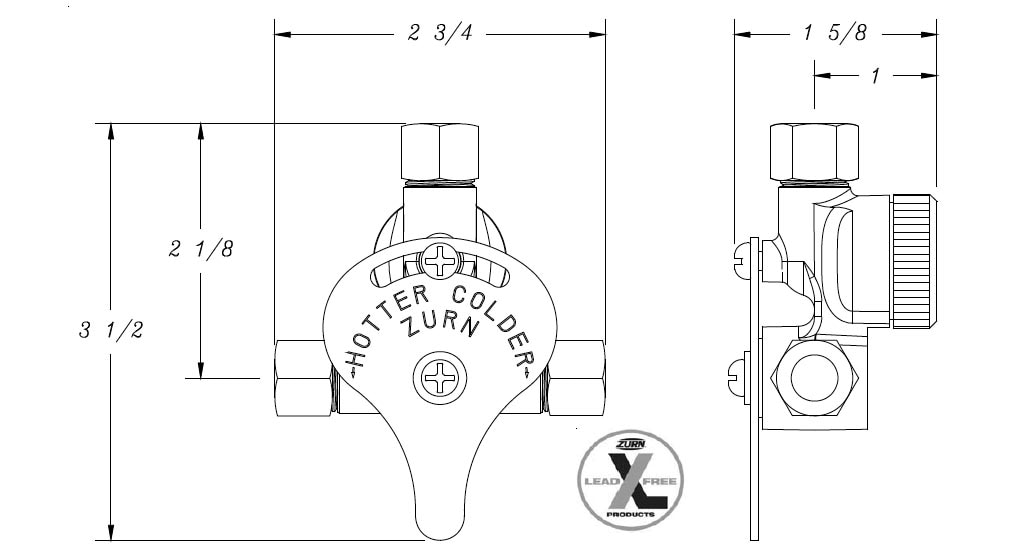

Measurement Diagram:
| Compatibility: | As replacement: Z6913-XL-MV, Z6915-XL-ACA-MV, Z6913-XL-CP8-E-MV, Z6915-XL-E-MV, Z6913-XL-E-MV As add-on: Z6913-XL, Z6913-XL-E, Z6915-XL, Z6915-XL-E, Z7440-XL, Z6953-XL-CV-F, Z6950-XL-S-F, Z6913-XL-CP4, Z6913-XL-E-SSH, Z6915-XL-E-SSH, Z6950-XL-S-E, Z6920-XL, Z6920-XL-E, Z6913-XL-CP4-E |
| Overall Dimensions: | 2-3/4" Wide x 3-1/2" Tall x 1-5/8" Deep |
| Manufacturer Part No.: | P6900-XL-MV |
| Primary Material: | Brass (and lead free construction) |
| Finish: | Rough |
| Included: | Valve only (includes integral filler, two back-checks and 3/8" fitting inlets and outlets. |
| Shipping Dimensions: | Approx. 6" Length x 4" Width x 4" Height |
| Shipping Weight: | Approx. 1.5 lbs. |
