  • Waterless Urinal (2004-Sonora) No-Flush High Performance Composite Urinal, Wall Drain, White

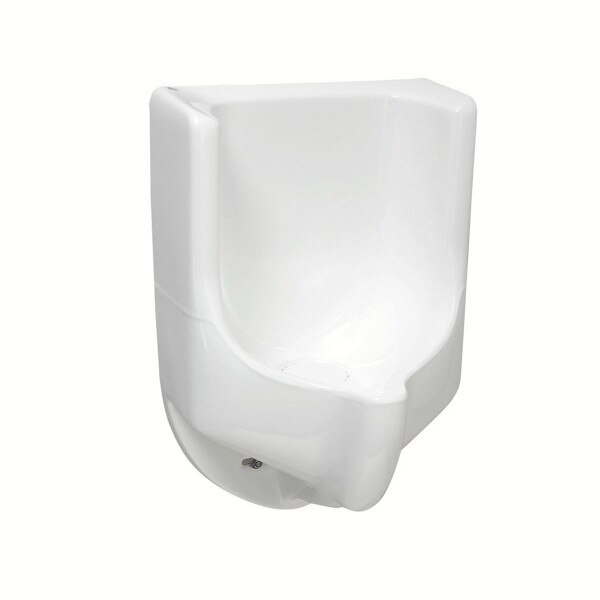

Waterless Urinal (2004-Sonora) No-Flush High Performance Composite Urinal, Wall Drain, White

(0) No Reviews yet
SKU: 2004-Sonora

This product will ship from the manufacturer in 3 days.

SONORA™ #2004
High Performance Composite (HPC)
Our ADA best seller! Covers most urinal footprints.
18.0"W x 28.0"L x 14.0"D (458MM x 712MM x 356MM)

> ADA Compliant
> Complies with ANSI Z124.9, A117, CSA® others< br /> > EcoTrap® Inside!!
> Urinal comes with two EcoTrap® inserts, mounting hardware, gasket and installation instructions.
> Item #5001 Brass Flange (not Included with urinal) - purchase separately, if needed, for new construction.
> Available in standard sanitary white or color. Please inquire.


> All wall drain No-Flush™ urinal models install like flushed urinals to the to the standard 2” (52mm) drain line via a gasket and flange. No adaptors needed!
> All wall drain units have a closed urinal bottom to avoid vandalism. No need to buy separate costly bottom covers.
> All of our urinals have a full 2” (52mm) interior drain line. This allows easy line cleaning and access if needed. Urinal does not need to be removed from wall for snaking. Saves time!
> No gaskets or O-rings needed on EcoTrap® inserts. Simple pressfit!
> The EcoTrap® unit removes completely for servicing and change-out. No taking traps apart for cleaning and to reassemble!

Primary Material: HPC (High Performance Composite)
Mount: Wall / Surface
Drain Location: Wall
Color: White (Other colors available)
Overall Dimensions: 18" Wide x 28" Tall x 17" Deep
Net Weight: 22 lbs.
Warranty: 3 Year Manufacturer Limited
Included: • Two unit integrated wall hangers
• AllFlange™ slots for Fange bolts
• Fastening hardware
• Gasket
• Two EcoTraps®, vertical trap design
Comments: Urinal is predrilled to accept most 2” brass anges from other manufacturer’s urinals in a retro t scenario. For new construction, specify #5001 brass urinal ange for 2” waste.

NOTE: Adequate BlueSeal® trap liquid to be provided for EcoTrap® of urinal, not furnished.
