Sloan 3335055 EAF-200 Optima Sensor Faucet, 0.5 GPM, Polished Chrome, Hard Wired, IQ Feature
Details
 | IMPORTANT: This product is hardwired. A power supply (AC adapter or transformer) is required to operate and must be purchased separately. |

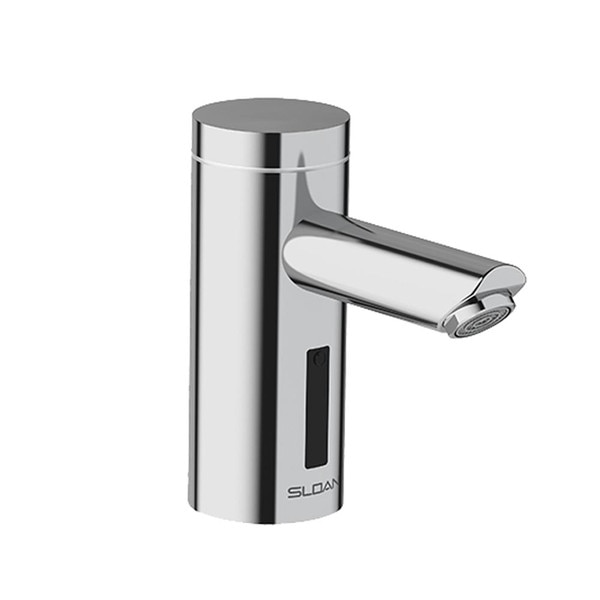

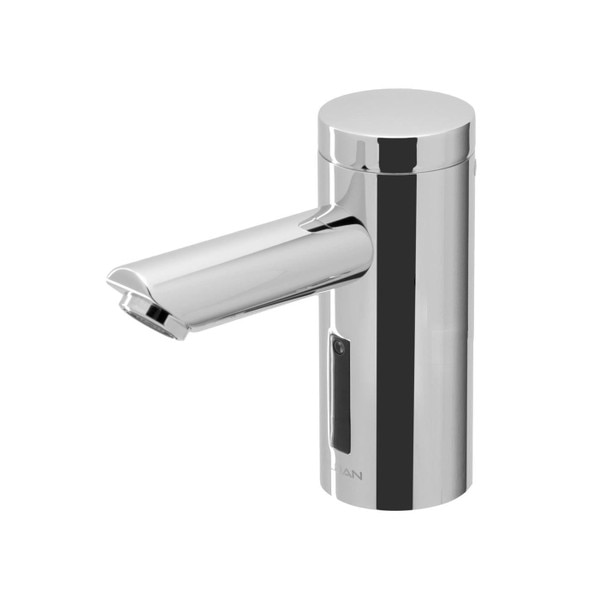

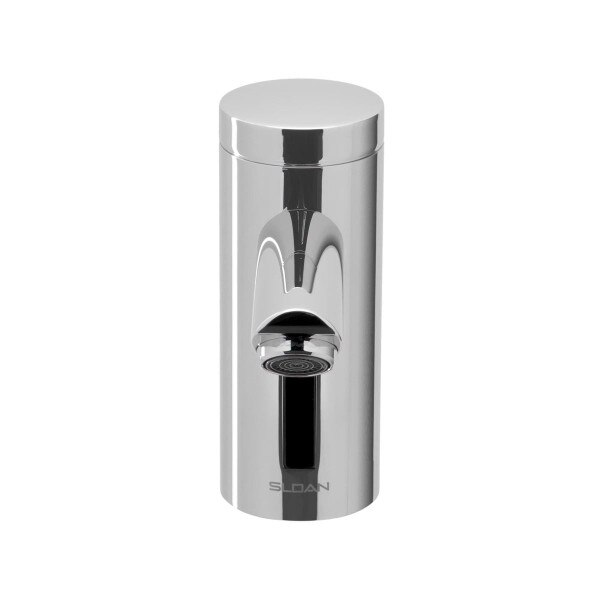

Sloan EAF-200 Optima Lino Sensor Faucet. Model: EAF-200-HLT-CP-0.5GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.5 GPM with an aerated (AER) output nozzle. Default settings use only 0.25 gallons per wash cycle! Polished chrome finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.

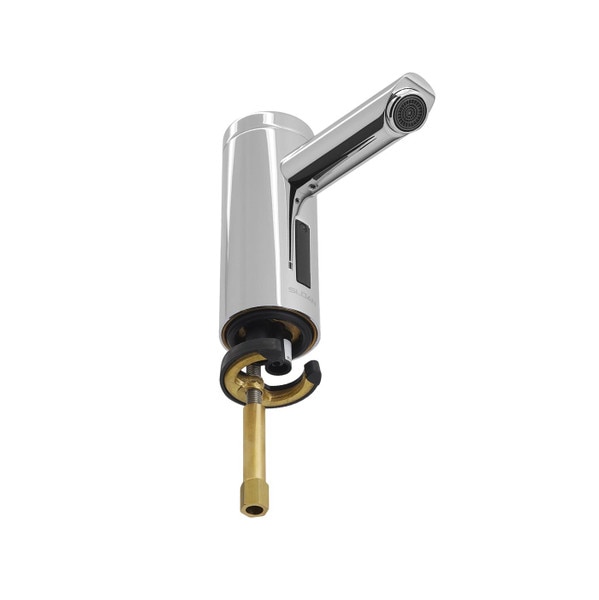

All Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
NOTE: A daisy chain electrical splitter cable (EAF44) is included (meaning these faucets can be connected in series to a power supply), however, an appropriate power supply must be purchased separately. See 0335009 EAF-11 for an AC adapter or 0335037 EAF-37 for a 6 VDC Box Mount Voltage Adapter (transformer).
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.25 gallons per cycle.
- Single hole mount type (4" and 8" Trim plates are available separately. See 3365468 or 3365024.)
- Sensor Range: 4" – 5" (102 – 127mm)
- Bluetooth adapter for use with Sloan Connect App®.
- Temperature Mixer not Included.
aka: Sloan general model name EAF200-LT CP ELECT FAUCET (IQ)
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima I.Q. |
| Model No.: | 3335055 (EAF-200-HLT-CP-0.5GPM-AER-IQ-FCT) |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (Touchless) |
| Power: | 110-120V (Standard), 300 Watts or Less |
| Delivery Type (Nozzle): | Aerated (AER) |
| Flow Rate: | 0.5 GPM (Gallons per Minute) 0.25 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | None |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3.1 lbs. |
| UPC / GTIN: | 671254337480 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Architectural Specifications:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, IAPMO, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NSF-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard
