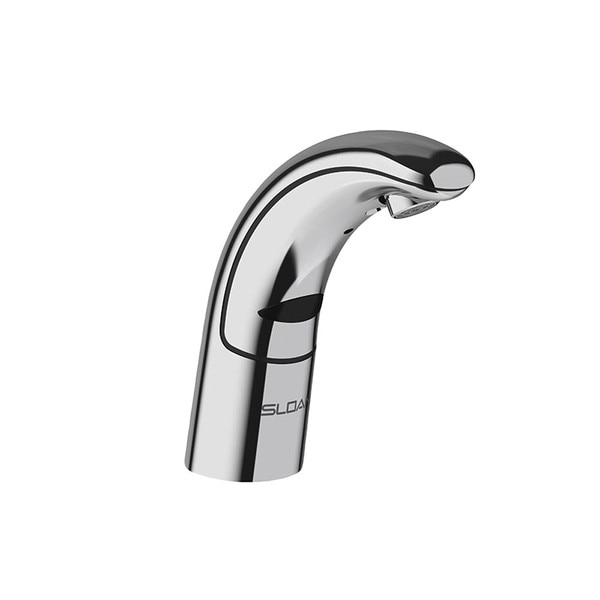

Sloan 3335153 EAF-150 Optima Sensor Faucet, 0.35 GPM, Polished Chrome, Battery Operated, IQ Feature
Details
Sloan EAF-150 Optima I.Q. Sensor Faucet. Model: EAF-150-BAT-CP-0.35GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.175 gallons per wash cycle! Polished chrome finish.
All Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
Sloan Optima EAF type faucets also feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Single hole mount type (4" and 8" Trim plates are available separately. See 0362011 or 3365303.)
- Temperature Mixer not Included.
- Sensor Range: 4" – 5" (102 – 127mm)
- Battery Life: 3 years 8,000 cycles/month (Optional power harvesting significantly extends service life).
- 6 Volt Lithium 2CR5 Commercial Battery included
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima I.Q. |
| Model No.: | 3335153 (EAF-150-BAT-CP-0.35GPM-MLM-IQ-FCT) |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (Touchless) |
| Power: | Battery Operated, 6 Volt Lithium 2CR5 |
| Delivery Type (Nozzle): | Multi Laminar (MLM) |
| Flow Rate: | 0.35 GPM (Gallons per Minute) 0.175 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | None |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3.2 lbs. |
| UPC / GTIN: | 671254450332 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Architectural Specifications:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, ASSE 1070, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Water Credit, HPD, IAPMO, LEED V4 Water Efficiency Credit, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard
