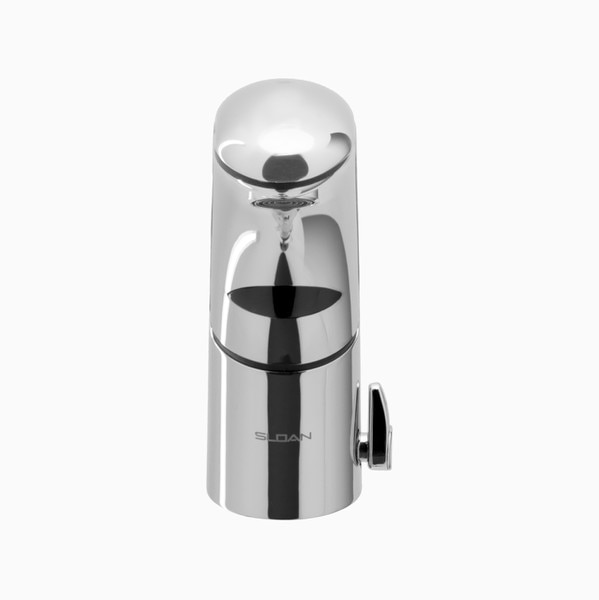

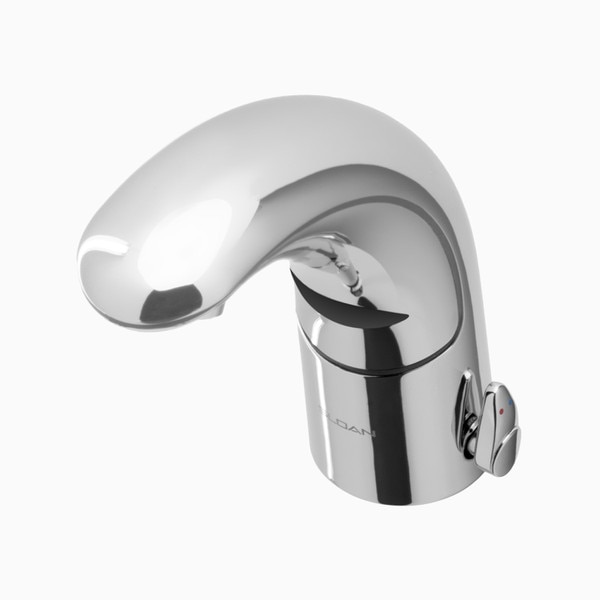

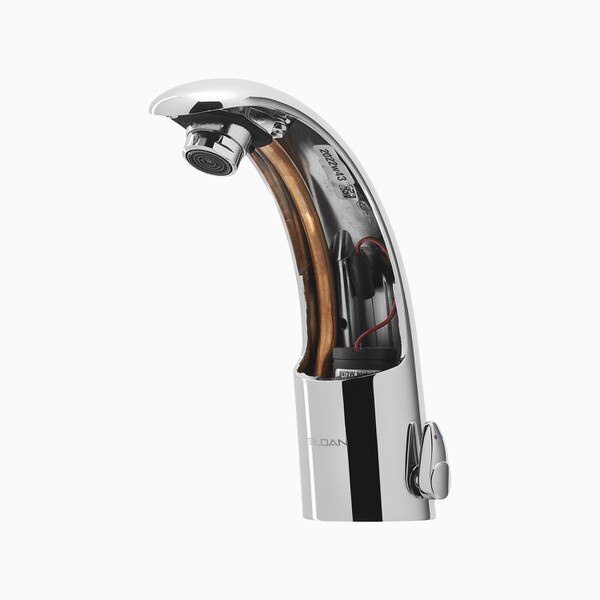

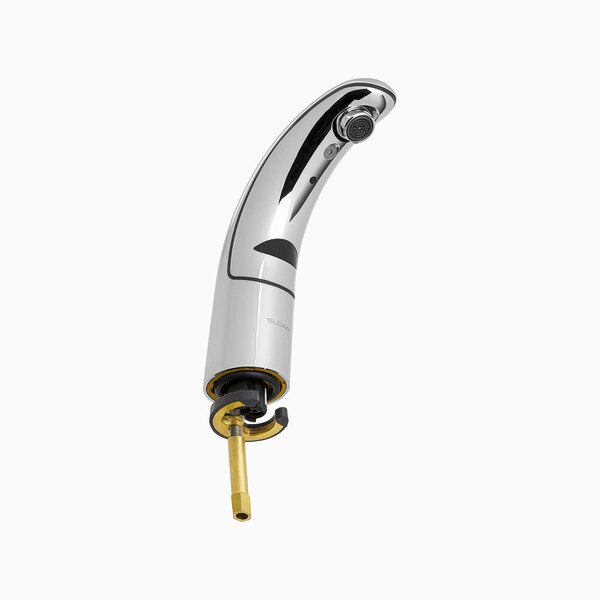

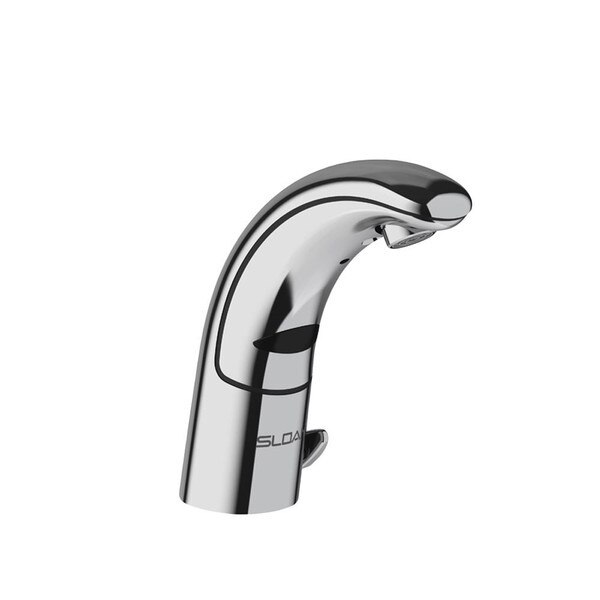

Sloan 3335151 EAF-150 Optima Sensor Faucet, 0.35 GPM, Polished Chrome, Battery Operated, Side Mixer, IQ Feature

Sloan EAF-150 Optima I.Q. Sensor Faucet. Model: EAF-150-BAT-ISM-CP-0.35GPM-MLM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.35 GPM with a multi-laminar (MLM) nozzle for greater efficiency and less splashing. Default settings use only 0.175 gallons per wash cycle! Polished chrome finish.

All Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.

This faucet features an integrated mixing lever that allows the temperature to be adjusted by the user. It can also be removed after temperature is set and replaced with a seamless cap to restrict further adjustment.

Sloan Optima EAF type faucets also feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.

• Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
• Single hole mount type (4" and 8" Trim plates are available separately. See 0362011 or 3365303.)
• Hot and cold temperature mix lever Included on right side of fixture.
• Sensor Range: 4" – 5" (102 – 127mm)
• Battery Life: 3 years 8,000 cycles/month (Optional power harvesting significantly extends service life).
• 6 Volt Lithium 2CR5 Commercial Battery included

Measurement Diagram:
