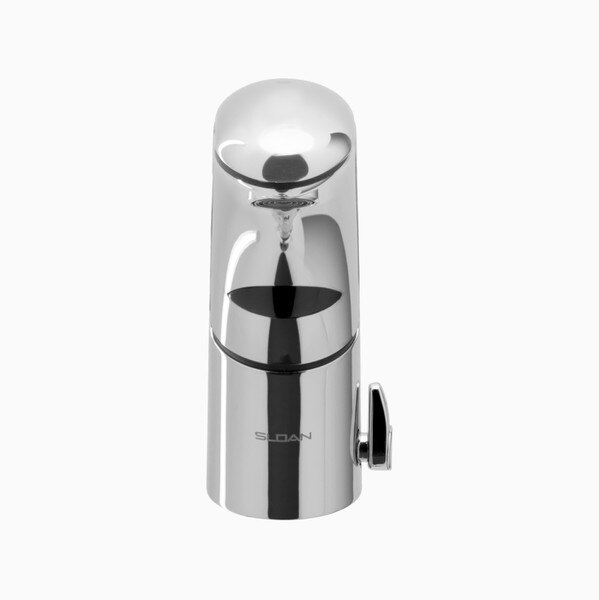

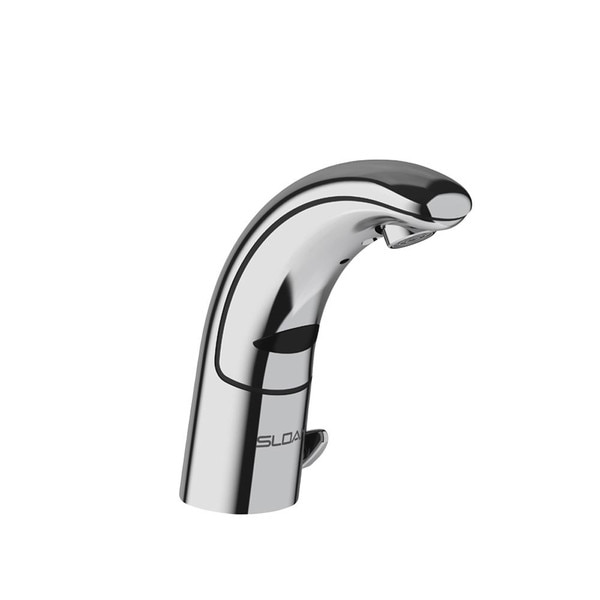

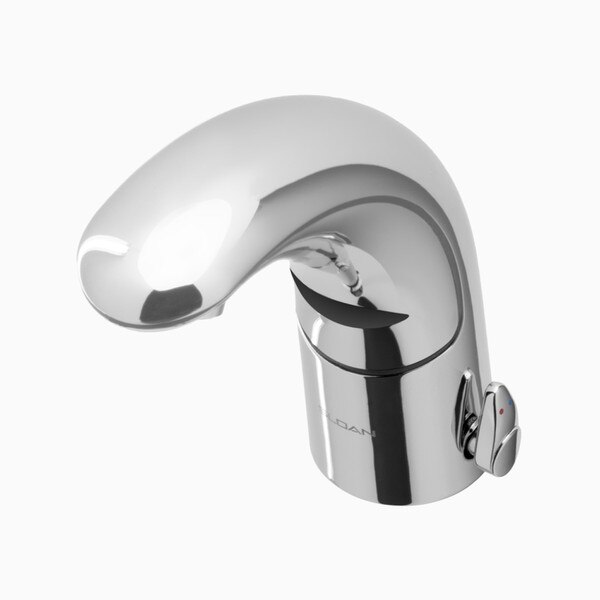

Sloan 3335121 EAF-150 Optima Sensor Faucet, 1.0 GPM, Polished Chrome, Battery Operated, Side Mixer, IQ Feature
Details
Sloan EAF-150 Optima I.Q. Sensor Faucet. Model: EAF-150-BAT-ISM-CP-1.0GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 1.0 GPM with an aerated type (AER) nozzle. Default settings use 0.5 gallons per wash cycle. Polished chrome finish.
All Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.
This faucet features an integrated mixing lever that allows the temperature to be adjusted by the user. It can also be removed after temperature is set and replaced with a seamless cap to restrict further adjustment.
Sloan Optima EAF type faucets also feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.

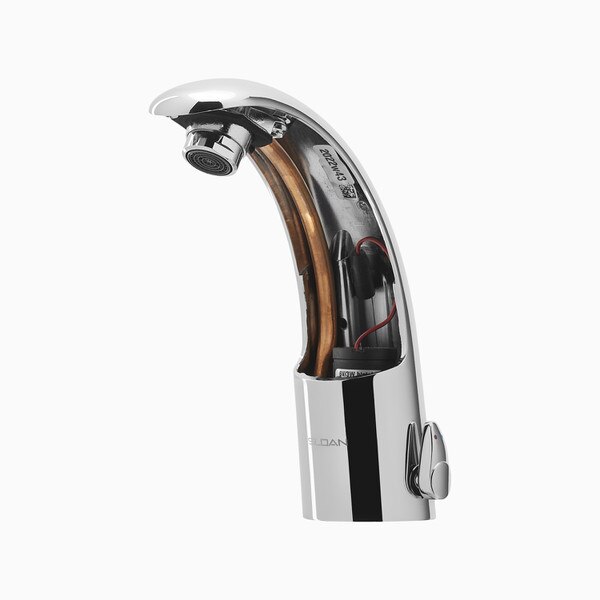

- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.

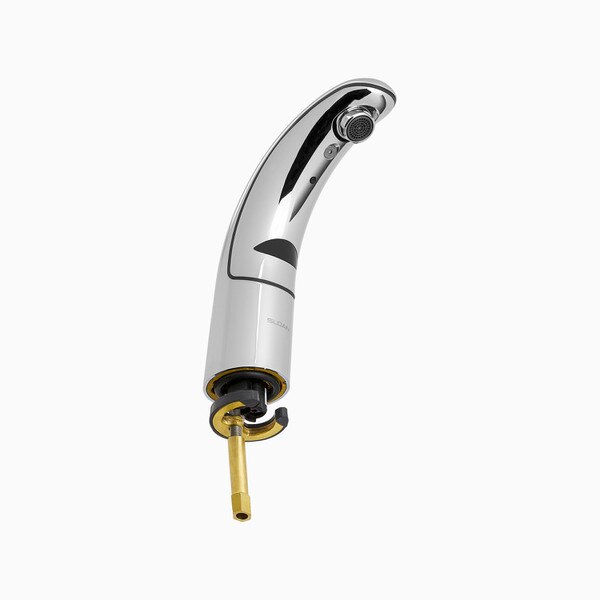

- Single hole mount type (4" and 8" Trim plates are available separately. See 0362011 or 3365303.)
- Hot and cold temperature mix lever Included on right side of fixture.
- Sensor Range: 4" – 5" (102 – 127mm)
- Battery Life: 3 years 8,000 cycles/month (Optional power harvesting significantly extends service life).
- 6 Volt Lithium 2CR5 Commercial Battery included
aka: Sloan general model name EAF150-ISM CP BAT FCT W/MIX (IQ) 1.0GPM
Measurement Diagram:
Specs
| Type: | Lavatory Faucet, Deck Mount, Mid Body, Sensor Operated |
| Brand: | Sloan Optima I.Q. |
| Model No.: | 3335121 (EAF-150-BAT-ISM-CP-1.0GPM-AER-IQ-FCT) |
| Mount Type: | Single Hole |
| Construction: | Cast Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (Touchless) |
| Power: | Battery Operated, 6 Volt Lithium 2CR5 |
| Delivery Type (Nozzle): | Aerated (AER) |
| Flow Rate: | 1.0 GPM (Gallons per Minute) 0.5 Gallons per Cycle |
| Cycle: | 30 Seconds |
| Mixer / Valve: | Integrated side mount hot/cold lever |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 3.4 lbs. |
| UPC / GTIN: | 671254437203 |
| Country of Manufacture: | China |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Includes supply hose(s) and appropriate mounting hardware. |
Architectural Specifications:
COMPLIANCES & CERTIFICATIONS
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, HPD, IAPMO, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard
